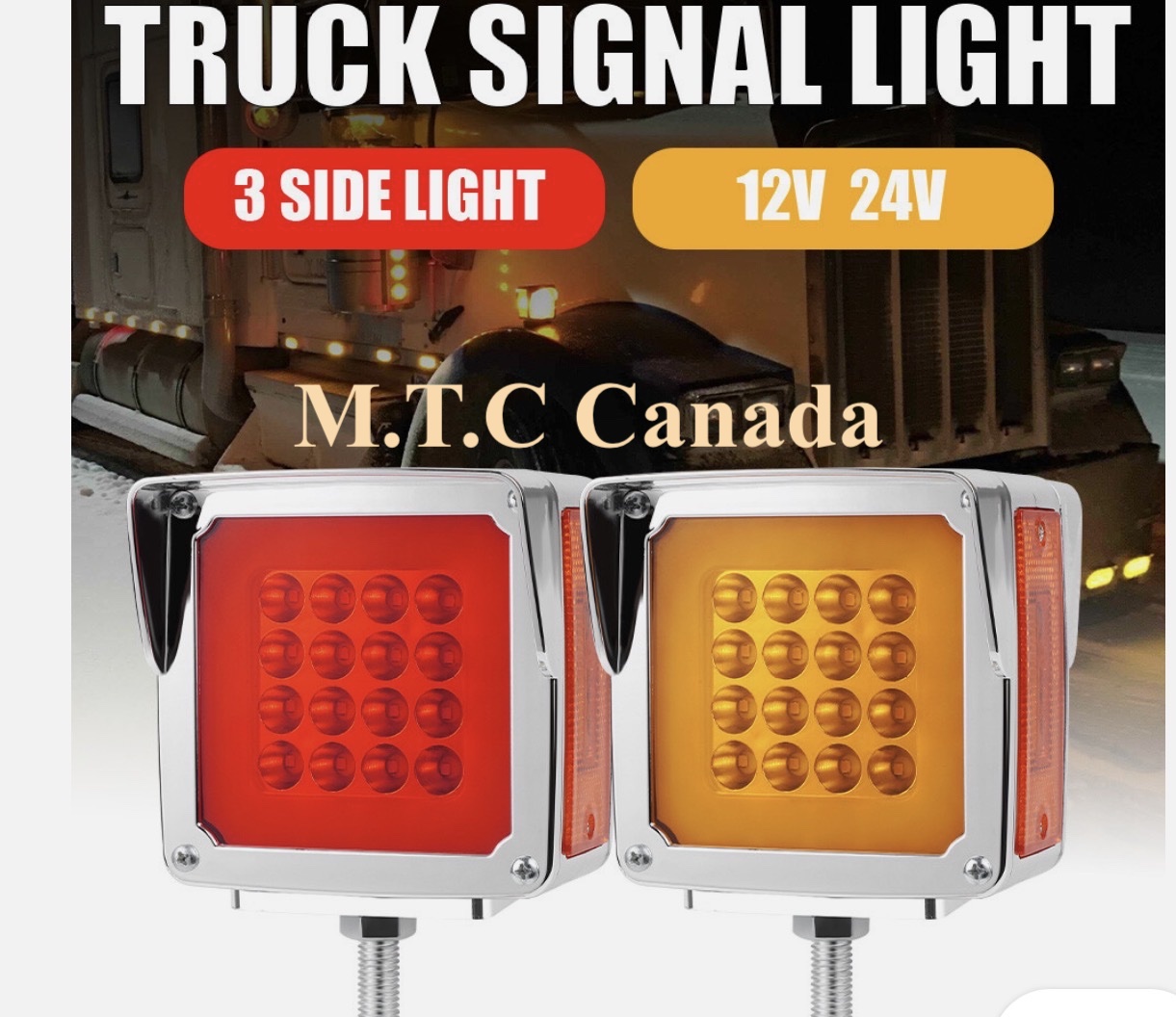

M0871:M.T.C Canada Square LED Pedestal Fender Light 12VDC Truck RV Trailer Double Face Red / Amber Turn Signal Brake With Halo

M0871:M.T.C Canada Square LED Pedestal Fender Light 12VDC 4.5 Inch Truck RV Trailer Double Face Turn Signal Brake With Halo

Single Bolt Mount

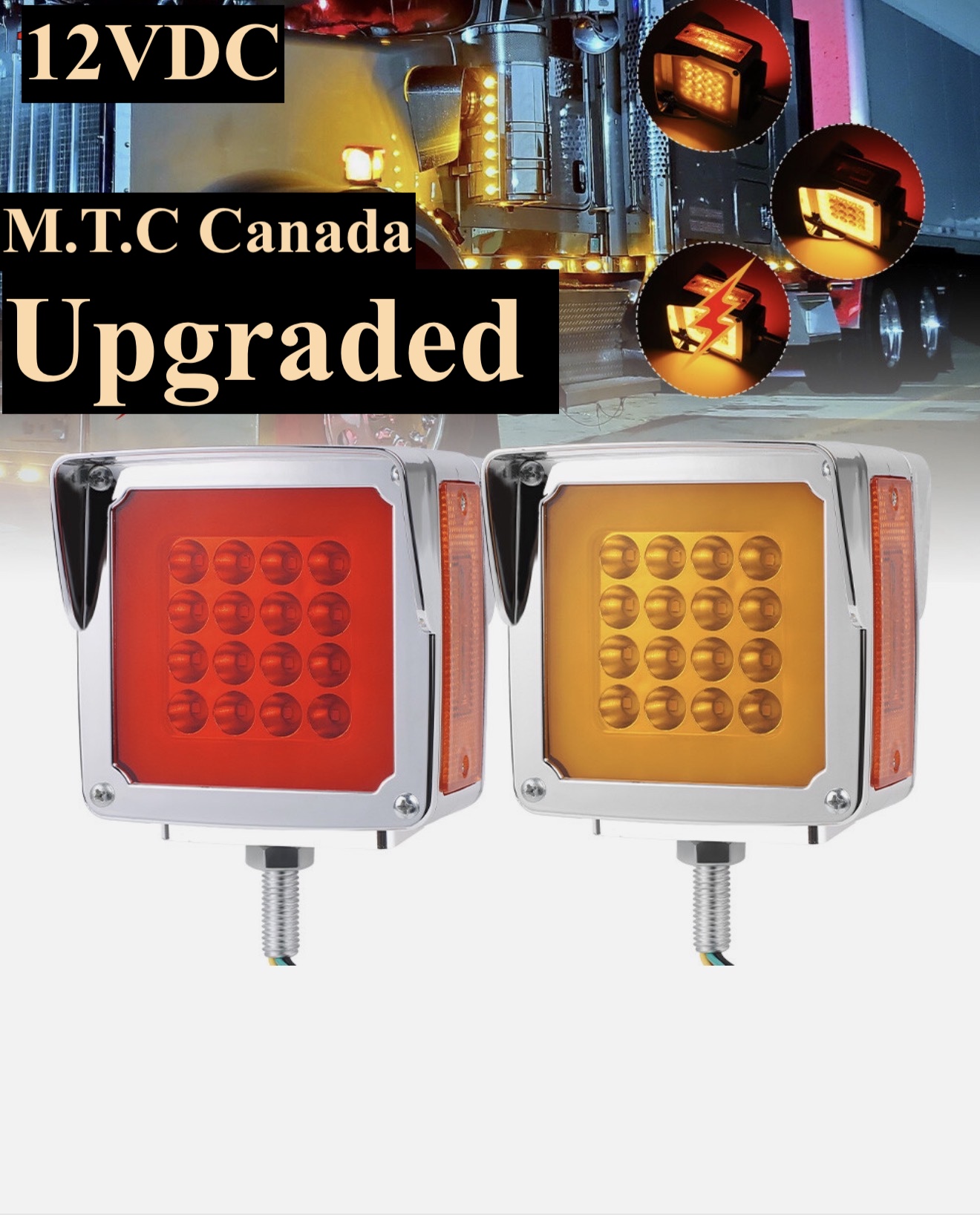

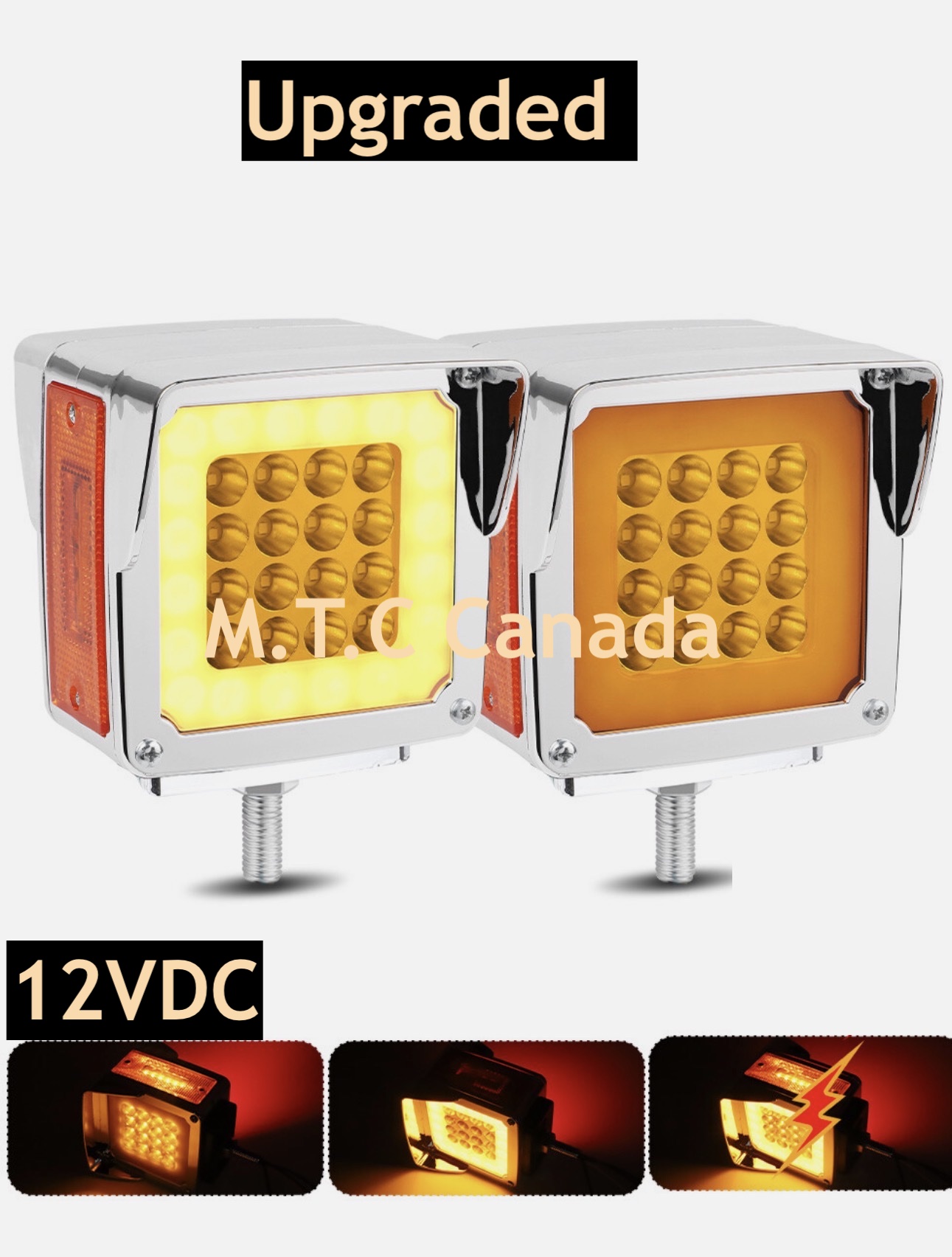

M.T.C Canada M0871 Square LED Pedestal Fender Light is designed for trucks, RVs, trailers, campers, and other 12V vehicles. This compact 4.5-inch double-face light features 16 LEDs with a halo/ring light, providing bright and highly visible lighting for turn signals, brake/marker functions, and flashing applications.

Key Features:

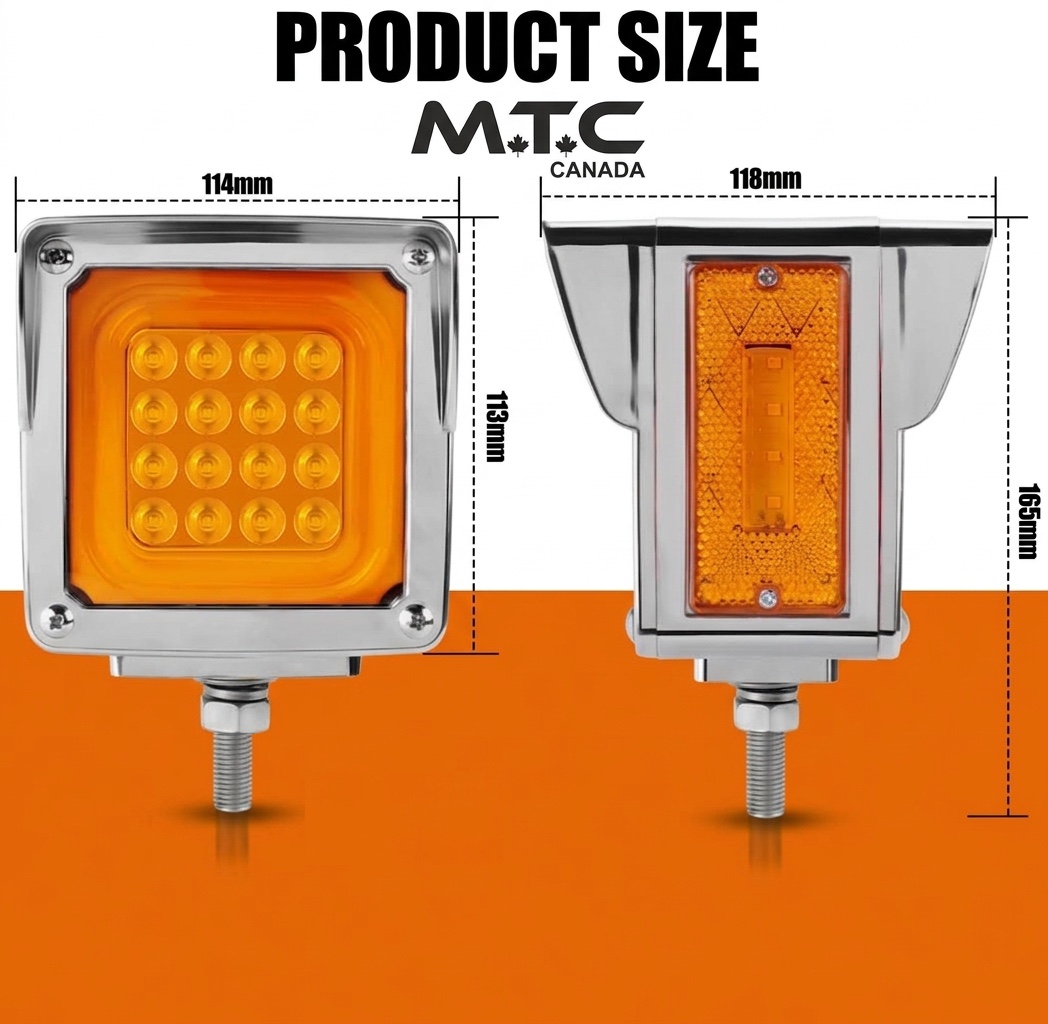

• Size: 4.5 Inch Square
• LEDs: 16 LEDs with Halo/Ring Light
• Light Colours: Red / Amber
• Functions: Turn Signal, Brake, Marker/Side Light & Flashing/Strobe

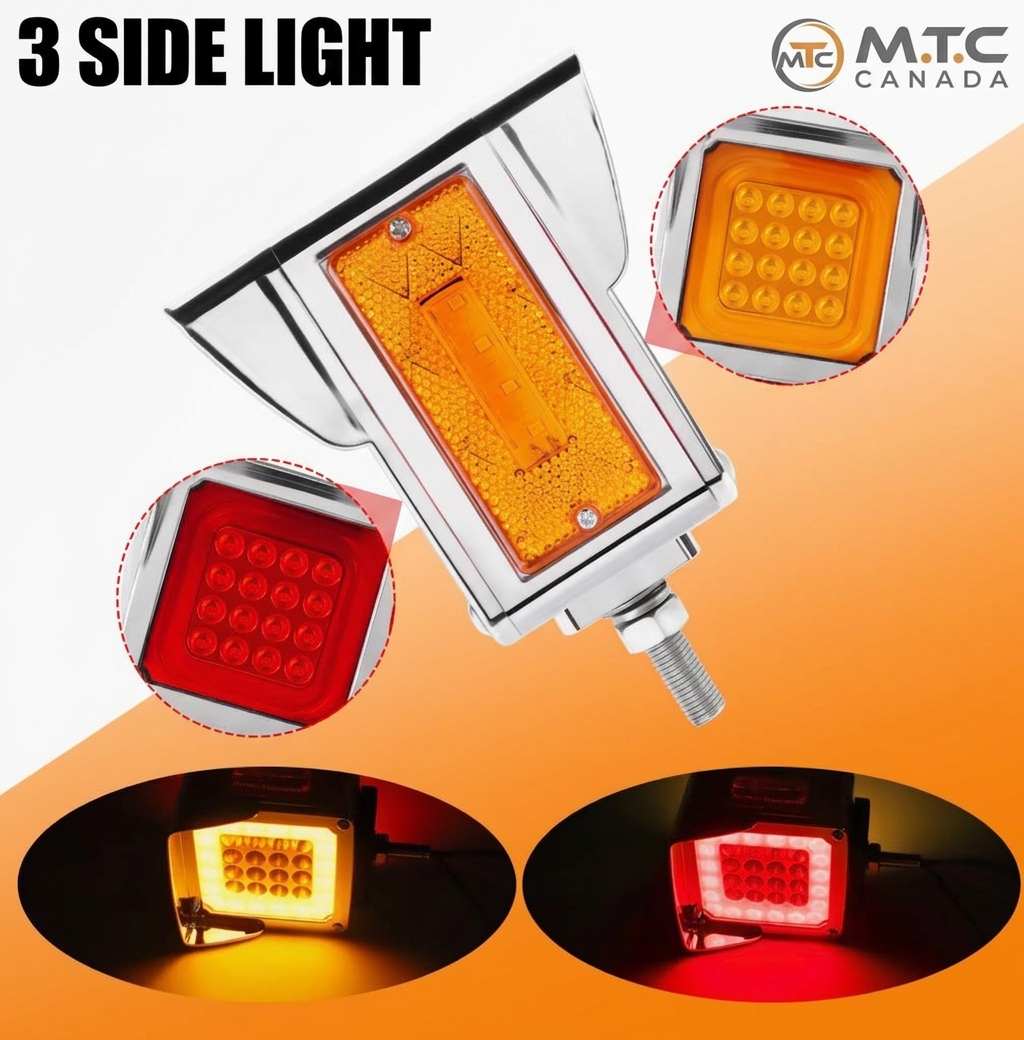

• Double-Face Design
• 4-Wire Connection

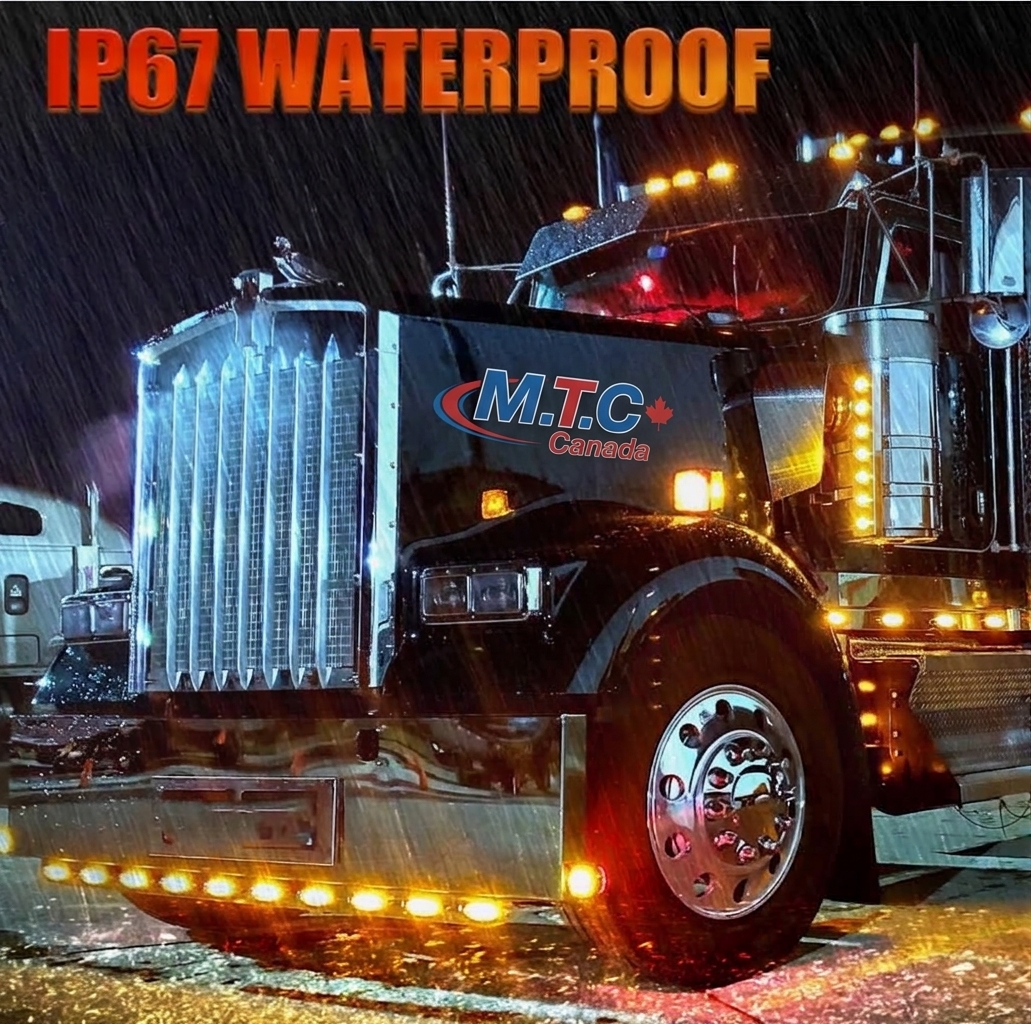

• Water Resistant: IP67

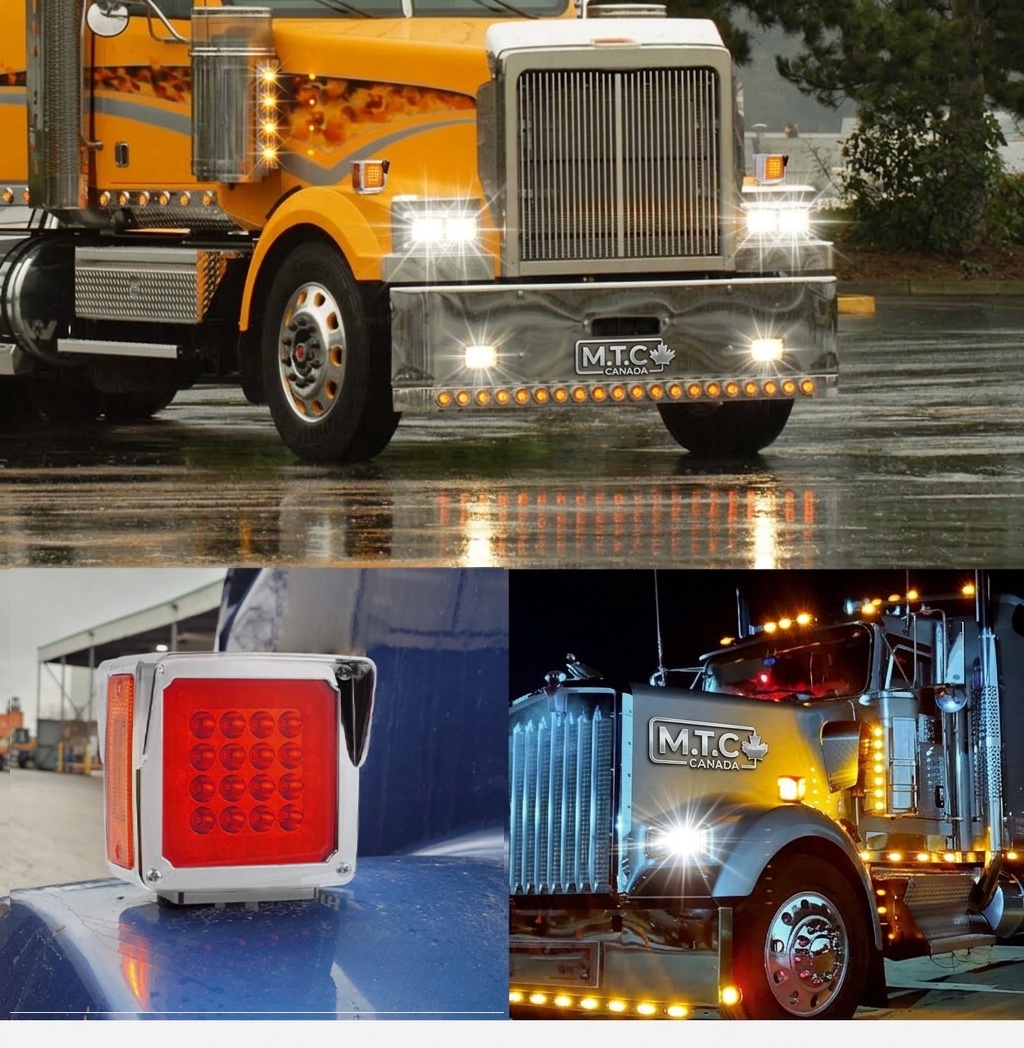

• Suitable for Truck, RV, Trailer, Camper and other 12V applications

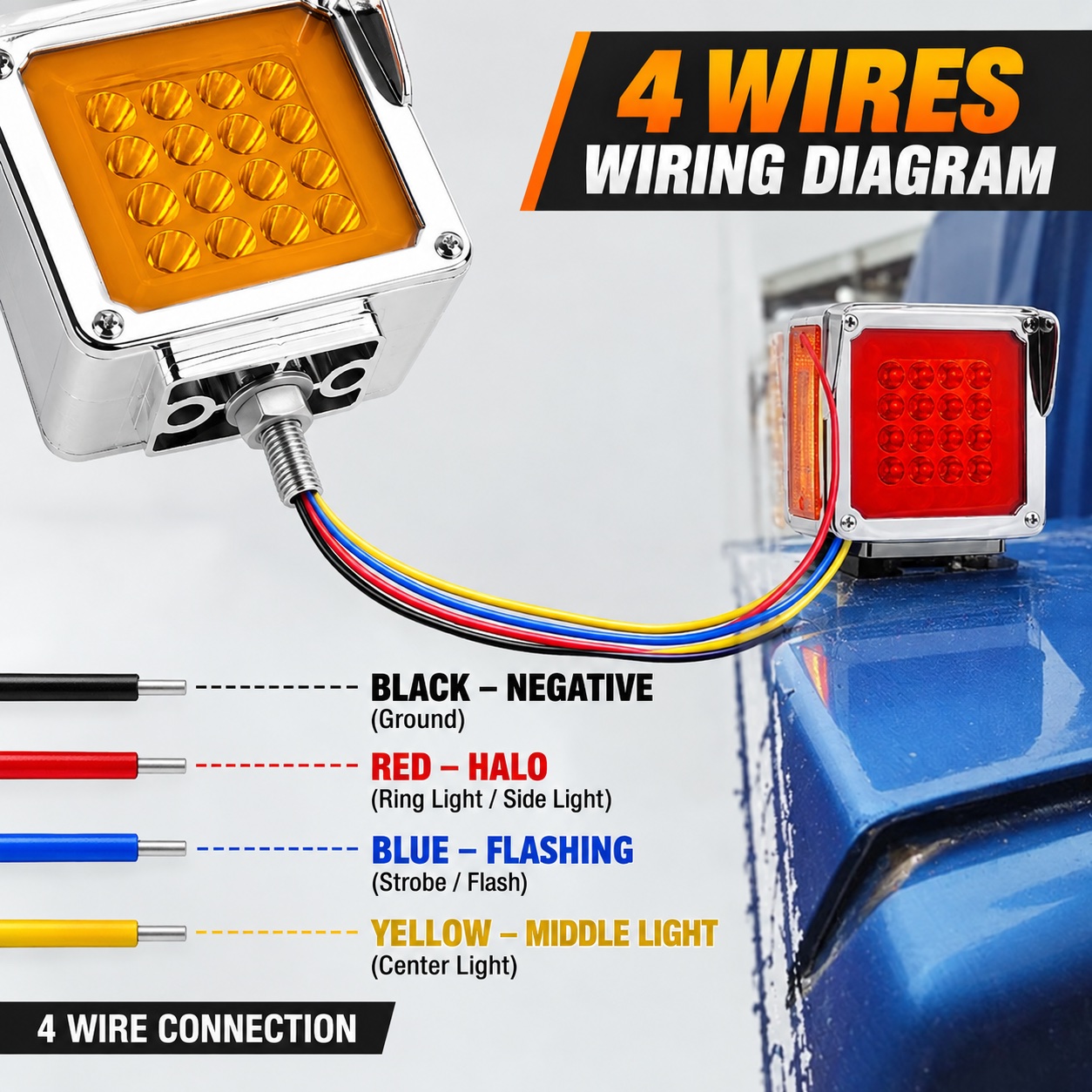

4-Wire Wiring Diagram

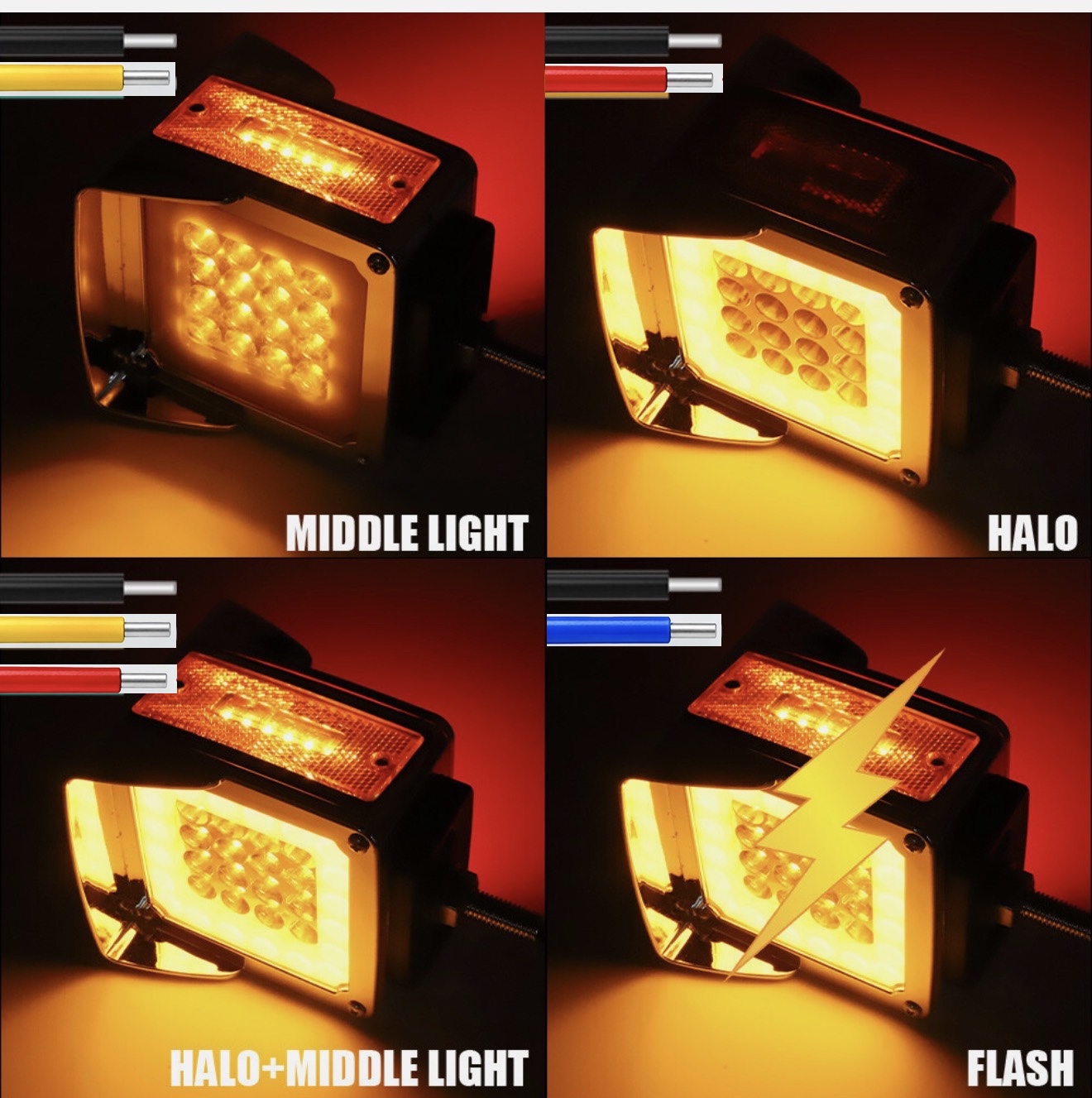

Wire ColourFunctionDescriptionBLACKNegativeGroundREDHaloRing Light / Side LightBLUEFlashingStrobe / FlashYELLOWMiddle LightCenter Light

Wiring Note: Connect the BLACK wire to negative/ground. Connect the other wires to the appropriate positive power source according to the desired lighting function.
