M0870 – M.T.C Canada 14 Inch LED Rear Tail Lights 2-Piece 102 LED 12VDC Brake, Stop & Turn Lights for Truck & Trailer

M0870 – M.T.C Canada 14 Inch LED Rear Tail Lights 2-Piece 102 LED 12VDC Brake, Turn, Reverse & Red Flashing Lights for Truck & Trailer

Product Description

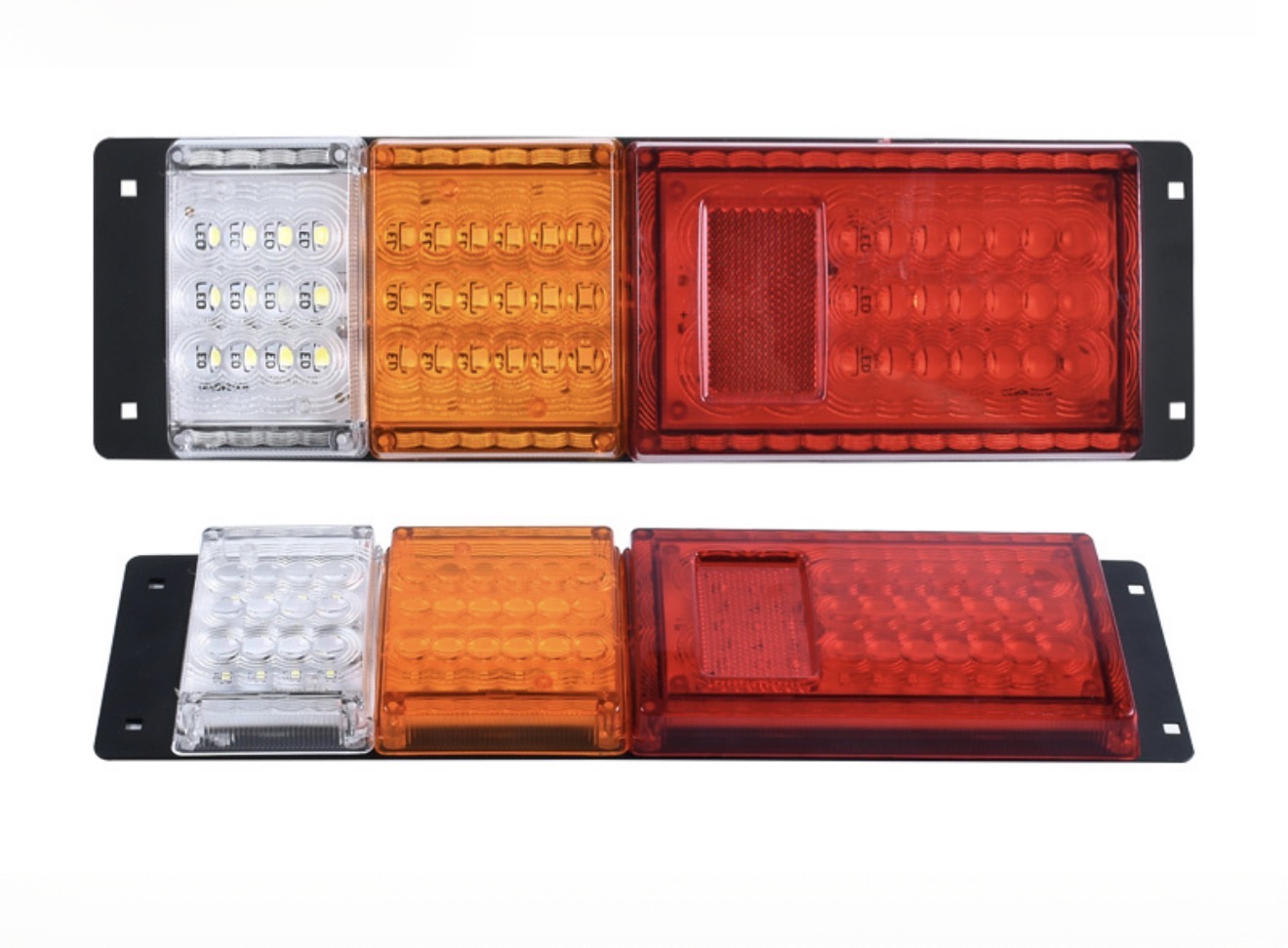

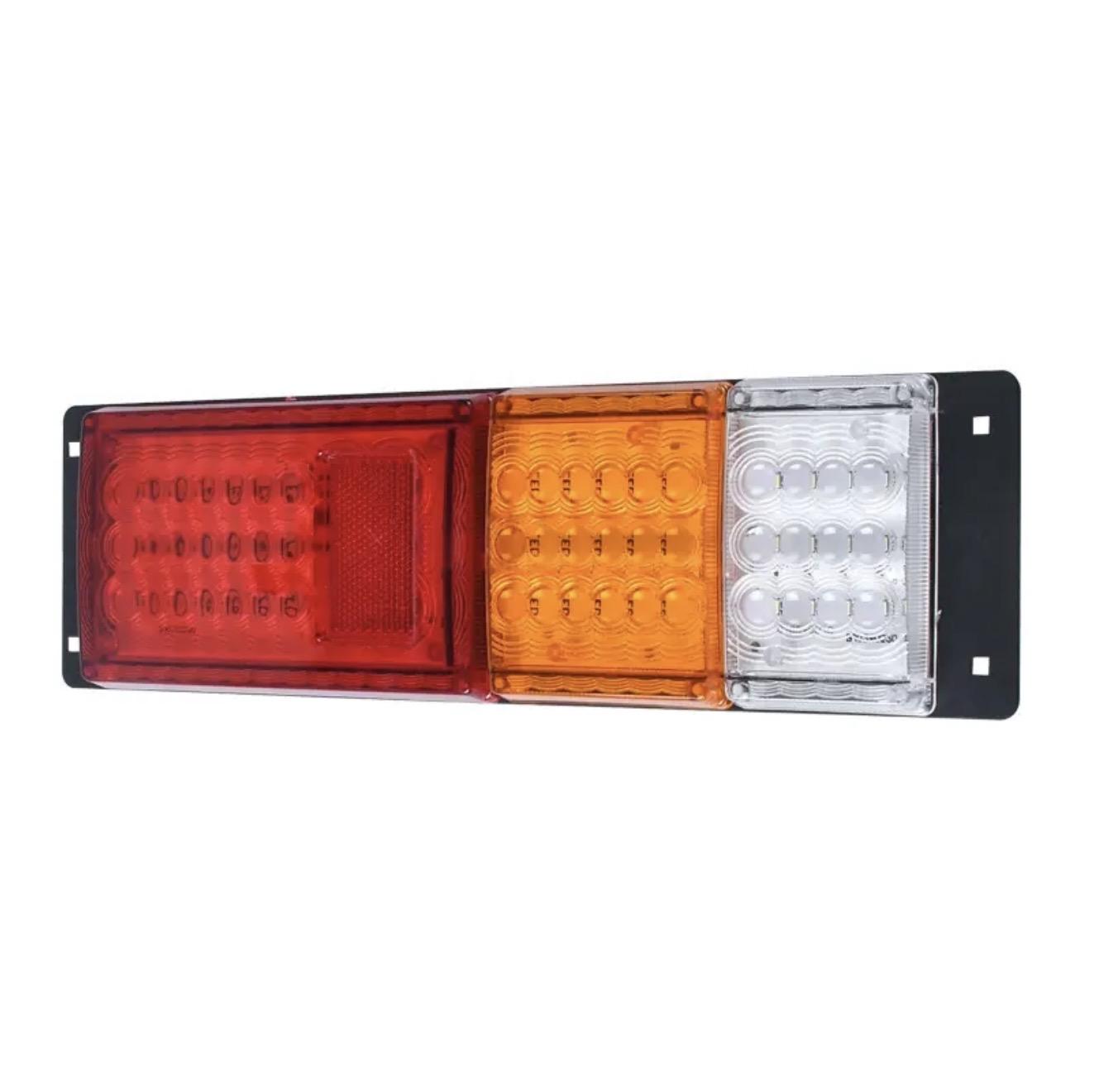

M0870 – M.T.C Canada 14 Inch LED Rear Tail Light Lamps are a 2-piece universal LED rear lighting assemblydesigned for trucks, trailers, utility vehicles and other 12V DC applications. Each lamp features Red, Amber and Clear lens sections for multiple rear-lighting functions, including brake, turn signal, reverse and red flashing.

The tail light assembly has a 360 mm total width and 68 mm frame height, with an Metal backplate and polycarbonate lenses for a durable vehicle-lighting design. The lamps include mounting hardware and wiring harnesses with multi-pin connectors.

Wiring Options

The lights are supplied with a wiring harness and connector. If your vehicle does not have the same plug, simply cut the plug and connect the wires directly (hard wire) to your vehicle's wiring system.

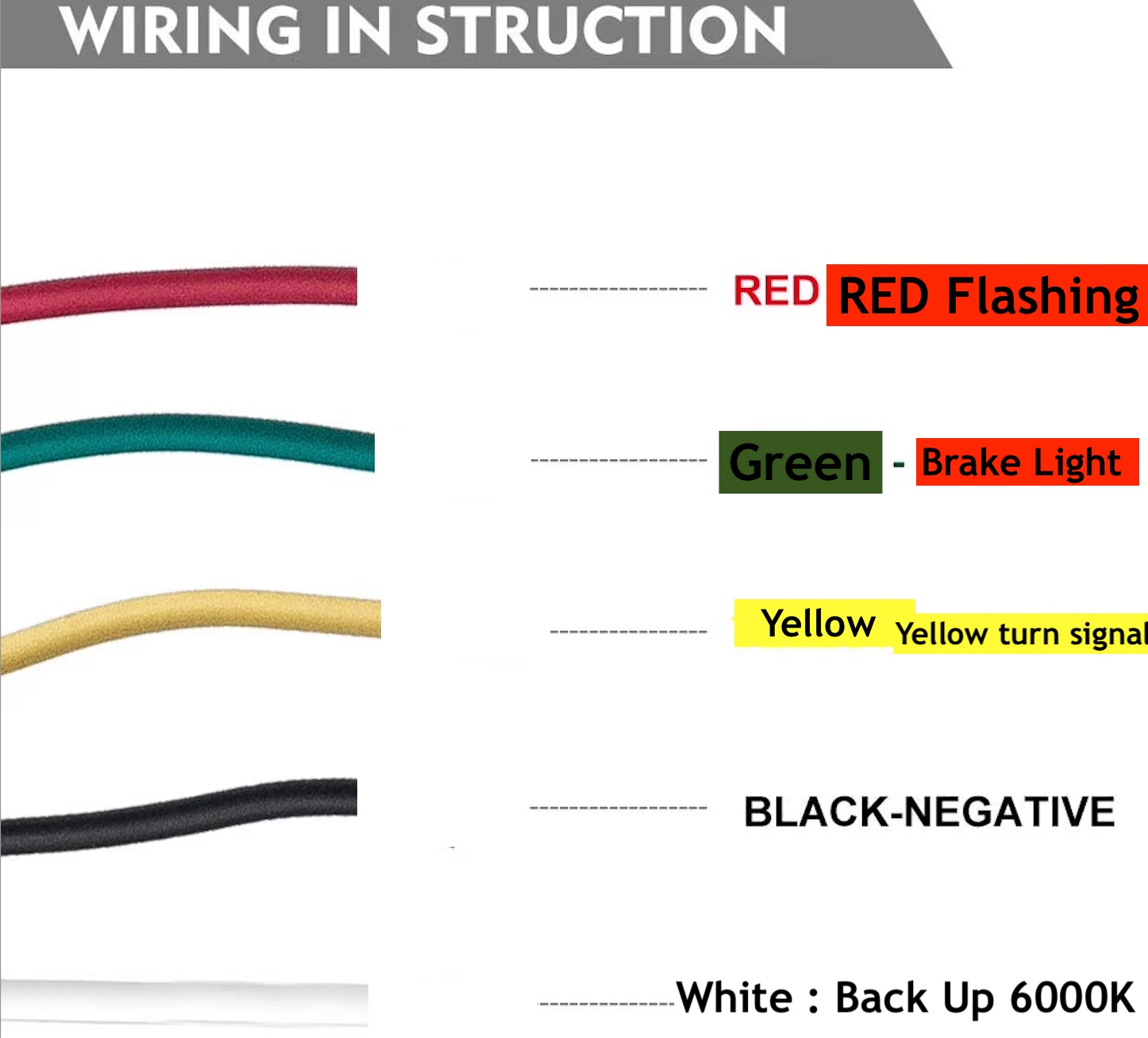

Wire Functions:

• RED: Red Flashing
• GREEN: Brake Light
• YELLOW: Yellow Turn Signal
• BLACK: Negative / Ground
• WHITE: Back-Up / Reverse Light – 6000K White

Important: Confirm your vehicle's wiring functions before connecting. Wiring colours should be matched according to the functions listed above.

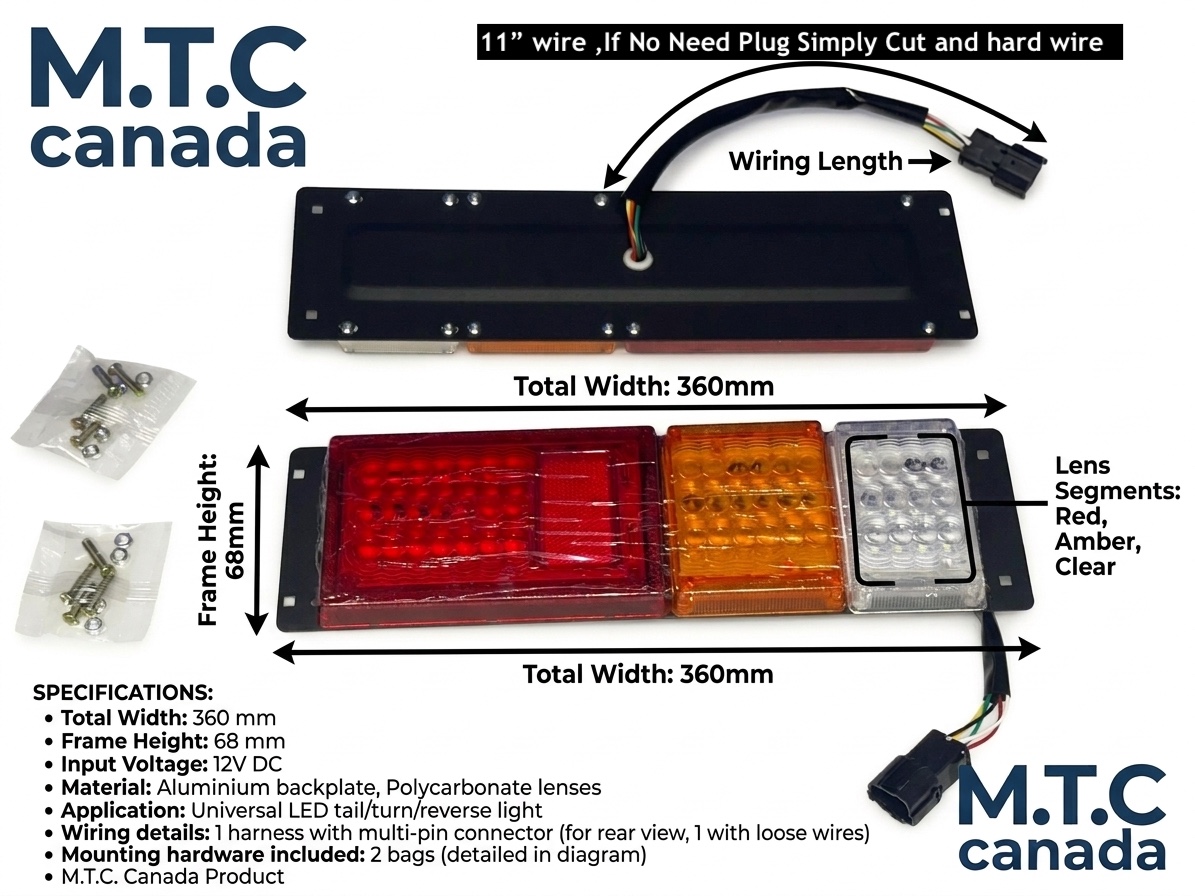

Specifications

• Product: M0870

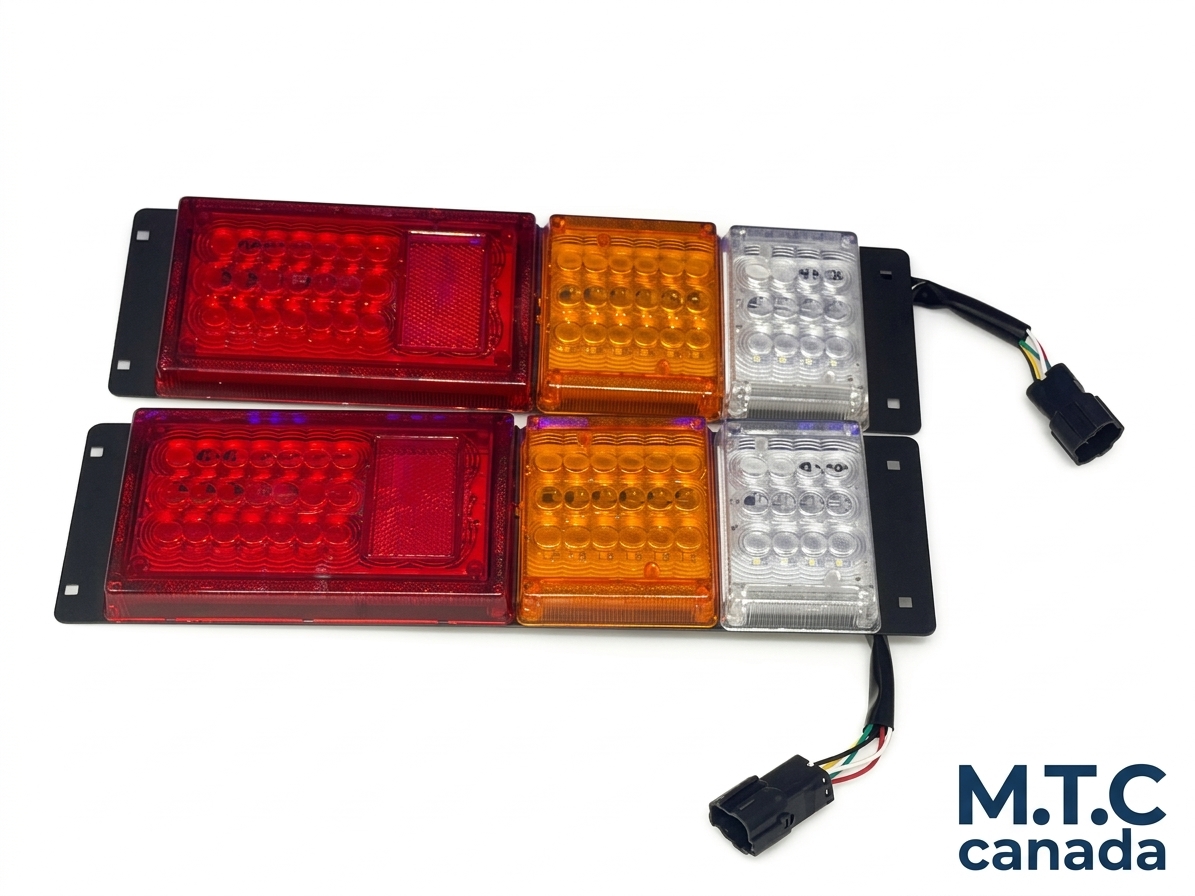

• Quantity: 2 Pieces
• Input Voltage: 12V DC
• Total Width: 360 mm
• Frame Height: 68 mm
• Lens Segments: Red, Amber, Clear
• Reverse Light: 6000K White
• Material: Metal  Backplate + Polycarbonate Lenses
• Application: Universal LED Tail / Turn / Reverse Light
• Wiring: Approximately 11" wire with multi-pin connector
• Installation: Plug-in or hard-wire installation

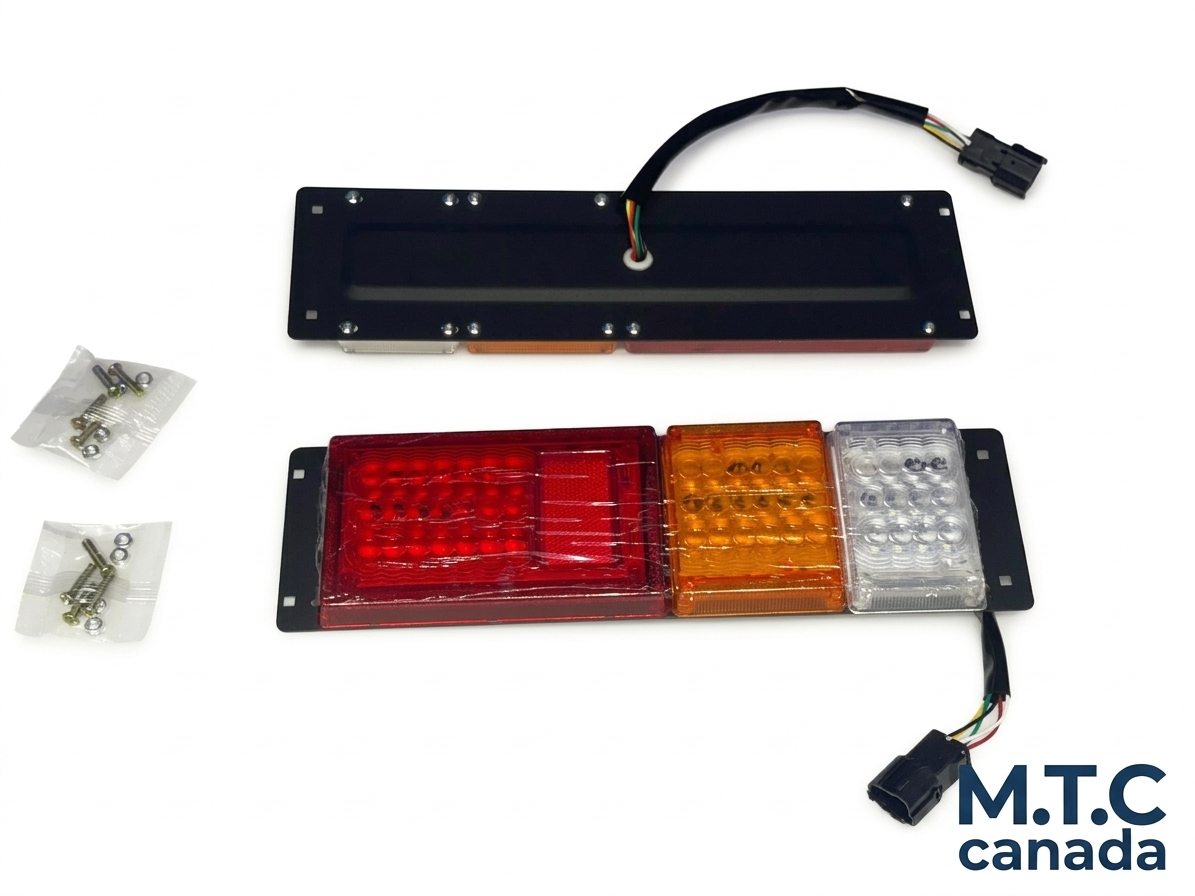

• Mounting Hardware: Included – 2 bags
• Brand: M.T.C Canada
•
