M0862: M.T.C Canada 24V RGBW ( Warm White ) LED Matrix Sheet – 72 LEDs, 14.4W, 500×250mm, CETL Certified ,LED Cuttable Backlighting Panel

M0862: M.T.C Canada 24V RGBW ( Warm White ) LED Matrix Sheet – 72 LEDs, 14.4W, 500×250mm, CETL Certified ,LED Cuttable Backlighting Panel

Product Description

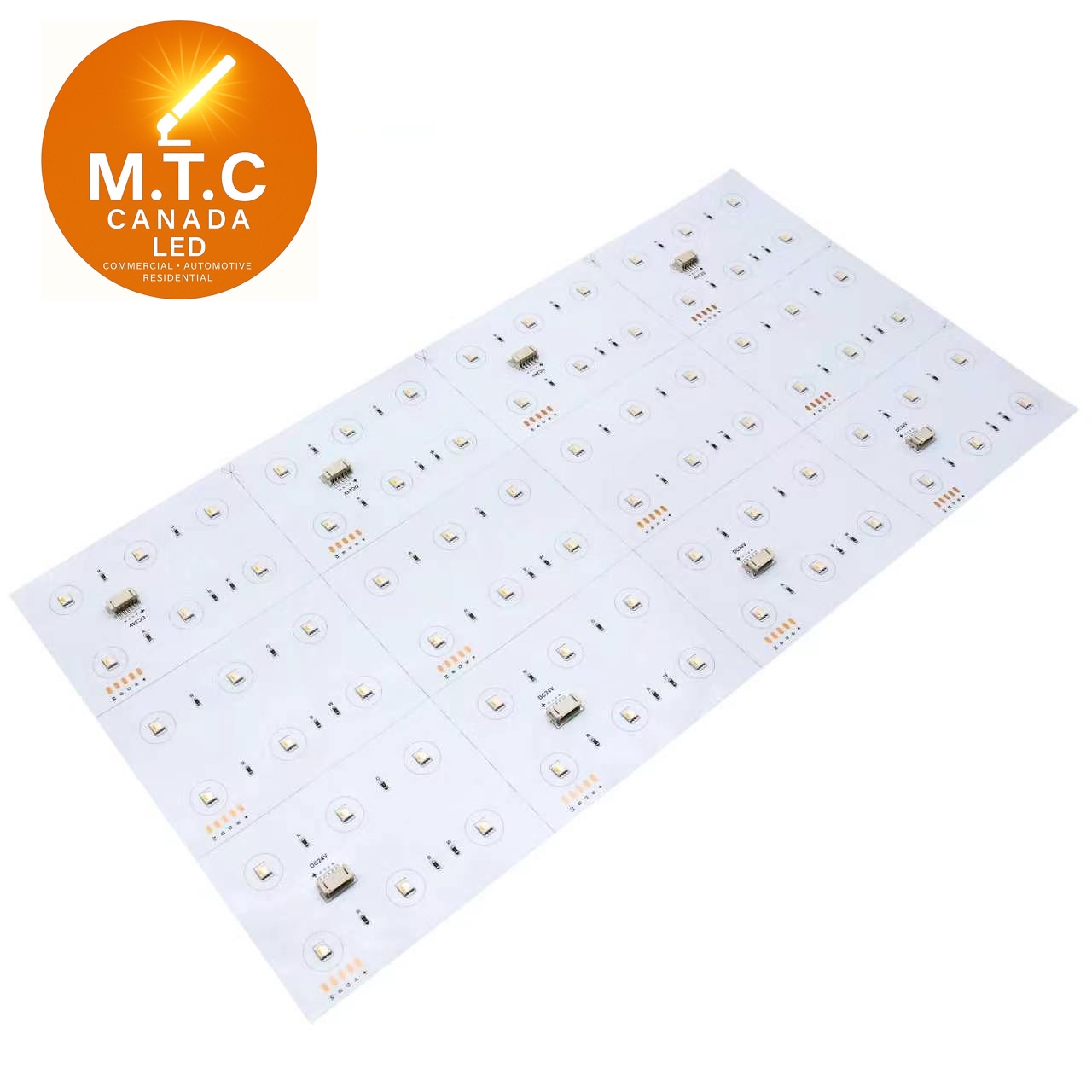

The M.T.C Canada RGBW 4-in-1 LED Matrix Sheet is a high-performance, cuttable LED lighting solution designed for professional backlighting, signage, architectural, and decorative lighting applications. Featuring 72 premium RGBW LEDs on a compact 500mm x 250mm panel, this light sheet delivers up to 1900 lumens of bright, uniform illumination while providing millions of color combinations and dedicated white light output.

Designed for flexibility and easy customization, the matrix sheet can be cut along designated 6-LED sections to fit a wide range of projects. The slim-profile design, combined with 3M adhesive backing, allows for quick installation on flat surfaces without the need for complex mounting hardware.

Operating on 24VDC with a low power consumption of only 14.4W, this LED matrix sheet offers excellent energy efficiency and reliable performance. It is ideal for light boxes, illuminated signage, display cabinets, retail displays, architectural features, backlit stone panels, exhibition booths, and custom RGBW lighting projects.

Important: This listing includes the LED Matrix Sheet only. RGBW Controller and 24VDC Power Supply are NOT included and must be purchased separately.

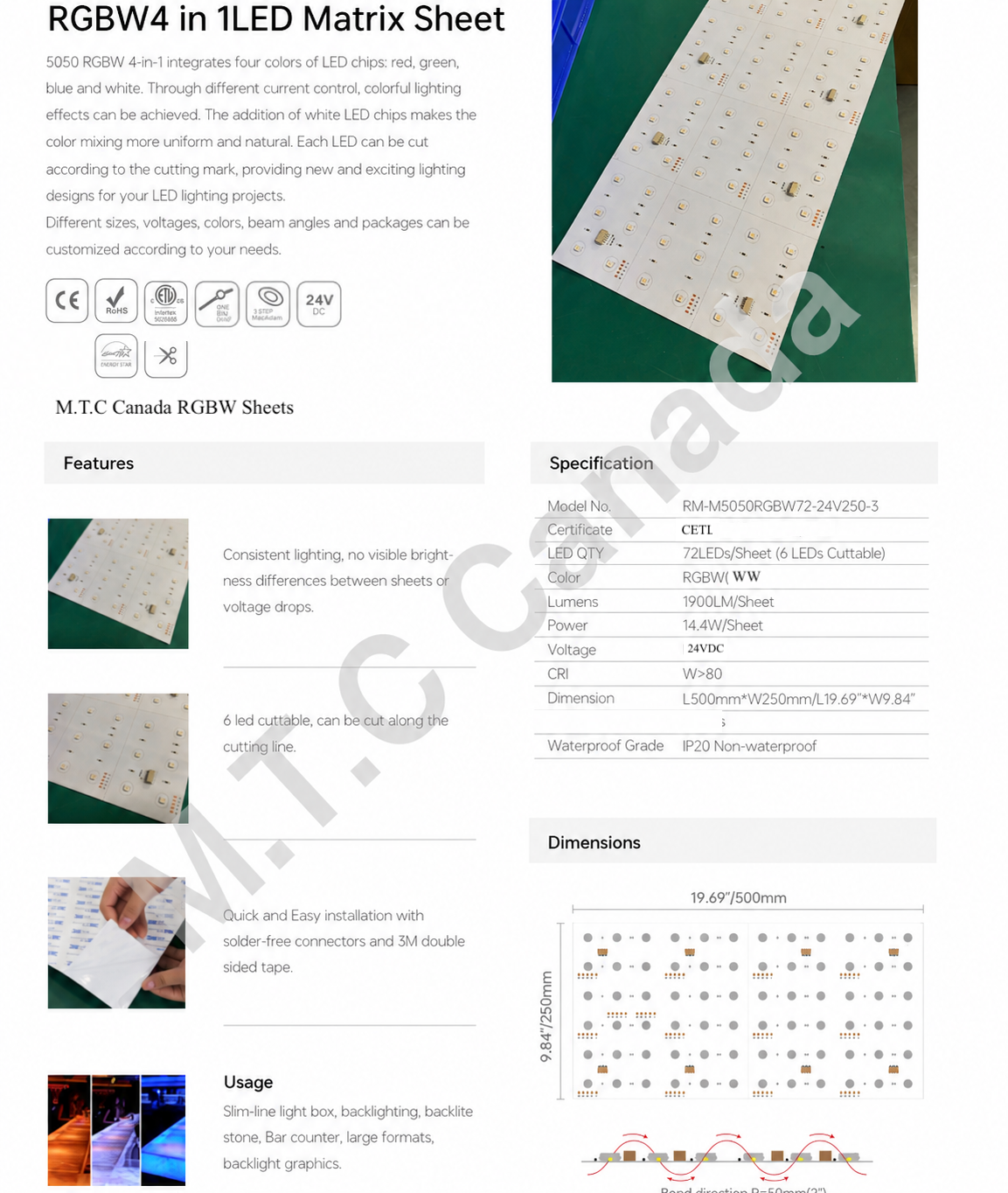

Specifications

• RGBW 4-in-1 LED Technology
• Input Voltage: 24VDC
• Power Consumption: 14.4W
• Light Output: Up to 1900 Lumens
• LED Quantity: 72 LEDs
• CRI: >80
• Dimensions: 500mm x 250mm (19.69" x 9.84")
• Cuttable Every 6 LEDs
• 3M Adhesive Backing
• IP20 Indoor Use
• cETL Certified

Key Features

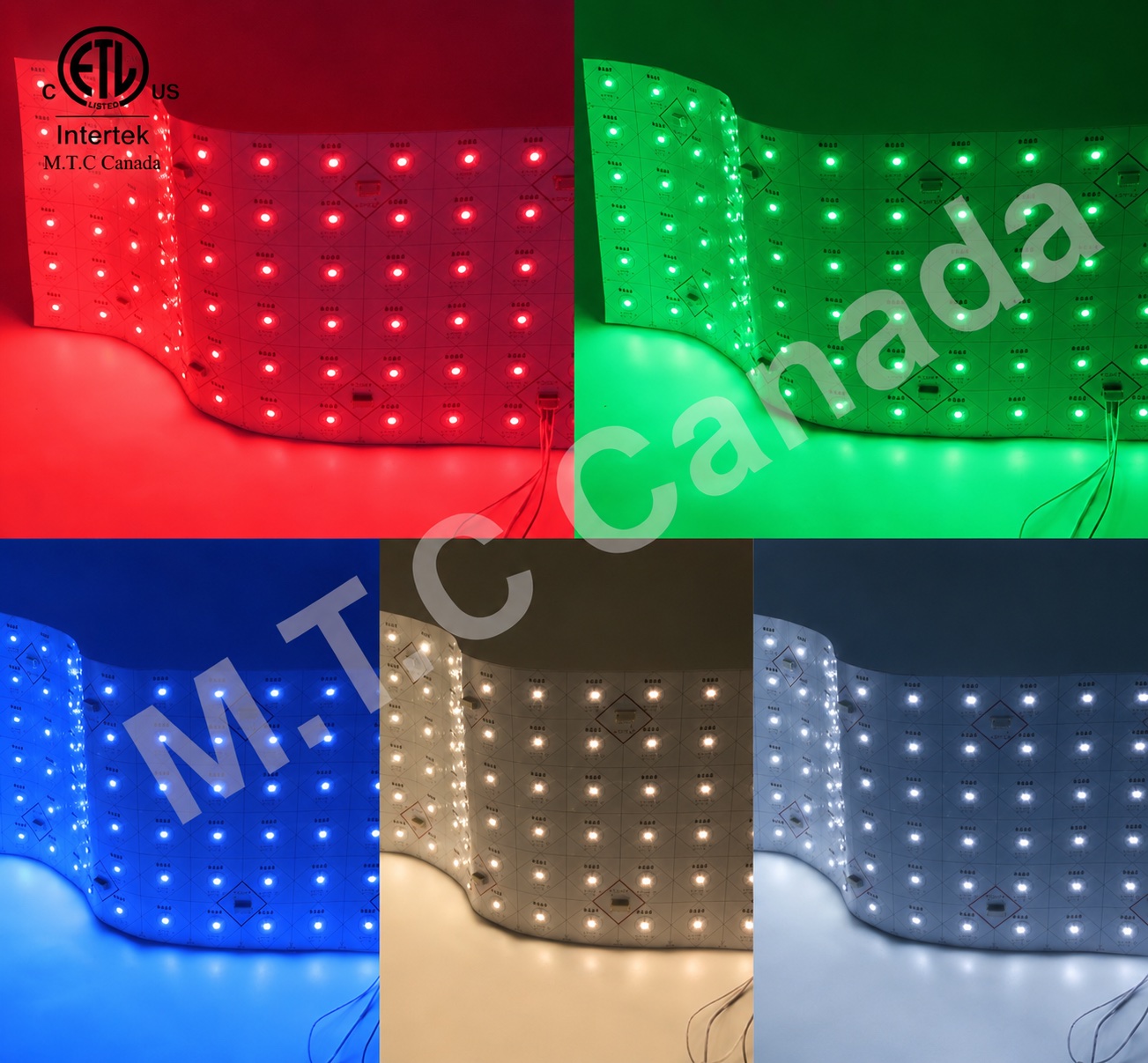

• RGBW 4-in-1 LED technology combines Red, Green, Blue, and Warm White LEDs for vibrant colors and pure white illumination.
• Operates on safe and efficient 24VDC power supply.
• 72 high-quality LEDs per sheet for bright and uniform light output.
• Delivers up to 1900 lumens per sheet with excellent color consistency.
• 6-LED cuttable sections allow easy customization to fit different project sizes.
• No visible brightness differences between sheets; minimizes voltage drop issues.
• Easy installation with strong 3M double-sided adhesive backing.
• Solder-free connector compatible for quick and convenient setup.
• Slim and lightweight design measuring 500mm x 250mm (19.69" x 9.84").
• CRI >80 provides accurate color rendering and natural-looking illumination.
• CETL Certified for quality, performance, and safety assurance.
• Ideal for light boxes, signage, backlighting, display cabinets, stone panels, bar counters, and architectural lighting applications.
• IP20 rated for indoor dry-location installations.
• Customizable sizes, voltages, colors, beam angles, and packaging available for OEM projects.
• Energy-efficient design with only 14.4W power consumption per sheet.

Application :

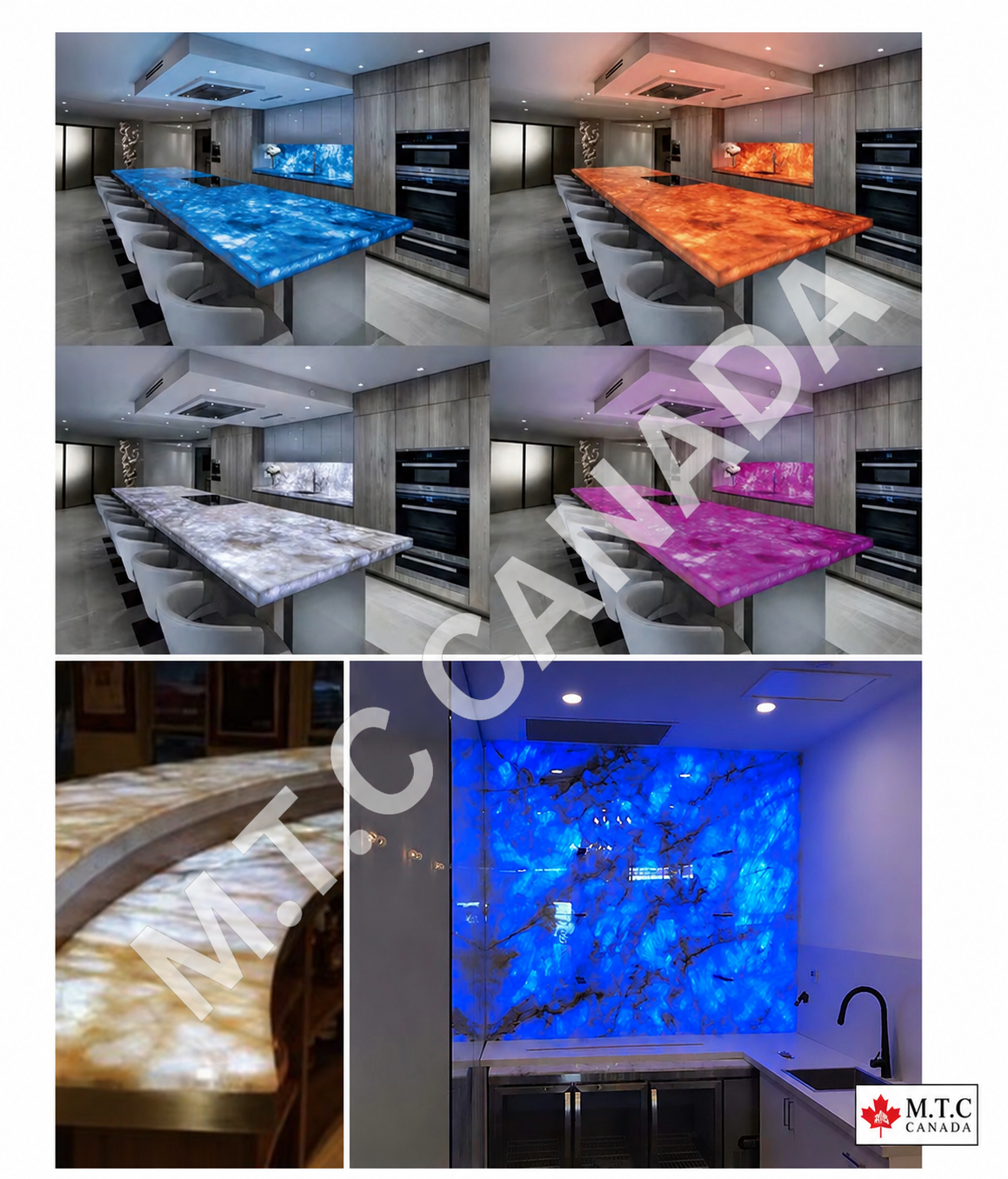

LED Light Boxes, Illuminated Signage, Retail Displays, Advertising Displays, Architectural Backlighting, Acrylic Panel Edge Lighting, Backlit Stone Panels, Onyx Panels, Bar Counter Lighting, Restaurant Lighting, Exhibition Booths, Trade Show Displays, Decorative Wall Lighting, Decorative Ceiling Lighting, RGBW Mood Lighting, Accent Lighting, Display Cabinets, Showcase Illumination, Backlit Graphics, Hotel Lighting, Hospitality Lighting, Entertainment Venues, Event Lighting, Residential Decorative Lighting, Commercial Interior Lighting, Under-Cabinet Lighting, Cove Lighting, Smart Home Lighting Systems, Museums, Art Galleries, Feature Displays, DIY Lighting Projects, OEM Lighting Applications, Custom LED Lighting Projects.
