The SP901E Signal Amplifier is a DC 5-24V LED signal booster designed to extend and enhance digital LED signals. It supports 5V TTL signal input and features low power consumption (<1W). With four output channels, this amplifier ensures stable data transmission for addressable LED strips. It has secure terminal block connections for easy wiring and mounting brackets for convenient installation. Ideal for large LED installations, it helps maintain signal integrity across extended LED strip setups.

Installation Guide for SP901E Signal Amplifier

The SP901E Signal Amplifier is designed to extend and boost digital LED signals for addressable LED strips. Follow these steps for proper installation:

1. Gather Necessary Components

• SP901E Signal Amplifier

• Power Supply (DC 5V-24V, depending on LED strip voltage)

• Addressable LED Strip (WS2812B, WS2811, SK6812, etc.)

• LED Controller (to send the signal to the amplifier)

• Screwdriver (for terminal connections)

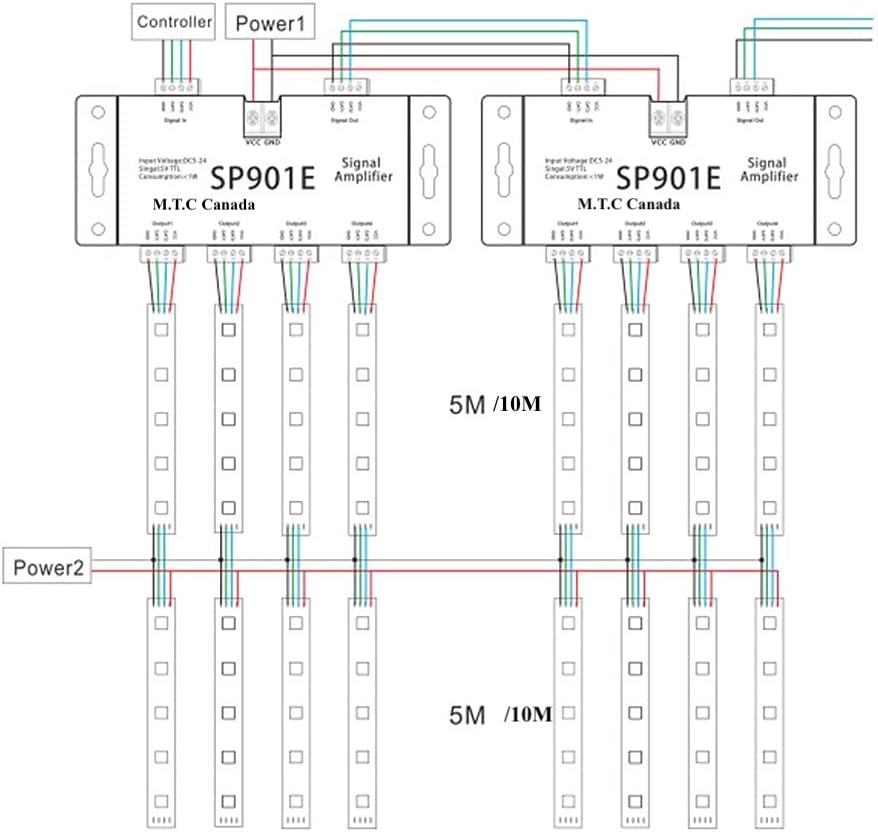

2. Wiring Instructions

Power Connection:

1. Turn off all power sources before wiring.

2. Connect Power Supply to the amplifier’s VCC (+) and GND (-) terminals (top middle section).

3. Ensure the power supply voltage matches your LED strip voltage (e.g., 5V, 12V, or 24V).

Signal Input (From Controller to Amplifier):

1. Connect the controller’s Data Output (DAT) to the amplifier’s Signal In (DAT1).

2. Connect GND (Ground) from the controller to the amplifier’s GND.

3. If using a two-wire data system (e.g., WS2811), connect DAT1 and GND.

Signal Output (From Amplifier to LED Strips):

1. Connect LED strips to Output 1, Output 2, Output 3, or Output 4:

   • VCC → LED VCC

   • GND → LED GND

   • DAT1 → LED Data

2. Each output can power multiple LED strips simultaneously.

3. Code Matching (If Needed)

• If you need to synchronize signals, follow the controller’s instructions to pair the amplifier with your setup.

• The amplifier automatically duplicates and regenerates signals for consistent LED behavior.

4. Power On and Test

1. Turn on the power supply.

2. Check if the LED strips are responding properly.

3. If there’s no response, check all connections and ensure the correct voltage is supplied.

Installation Notes:

✅ Use the same voltage for the amplifier, power supply, and LED strip.
✅ Ensure good wire connections to avoid flickering.
✅ For long runs, install additional SP901E amplifiers as needed.
✅ Keep signal cables short to prevent data loss.

1) M0742 Controller and M0741 strip ,

2) M0646 Strip and M0680 And M0786 Controller

And Use With 4 wire Controller
