M0788-M.T.C Canada RGBW Amplifier High Speed Power Amplifier Input/Output voltage: DC 5-24V Total output of current: max 4°10A

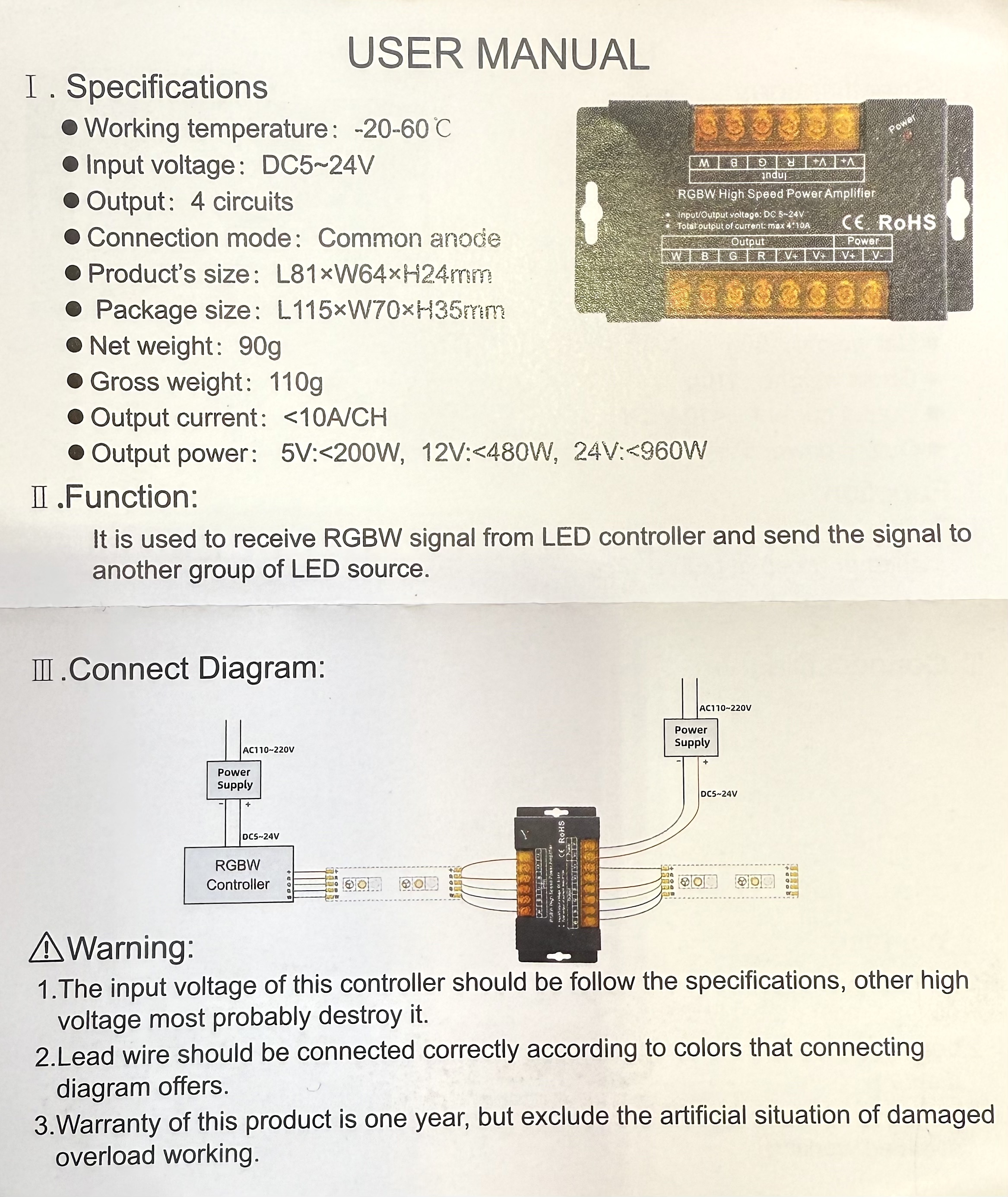

USER MANUAL
I. Specifications
• Working temperature: -20 to 60°C
• Input voltage: DC 5–24V
• Output: 4 circuits
• Connection mode: Common anode
• Product size: L81 × W64 × H24 mm
• Package size: L115 × W70 × H35 mm
• Net weight: 90g
• Gross weight: 110g
• Output current: <10A per channel
• Output power:
• 5V: <200W
• 12V: <480W
• 24V: <960W

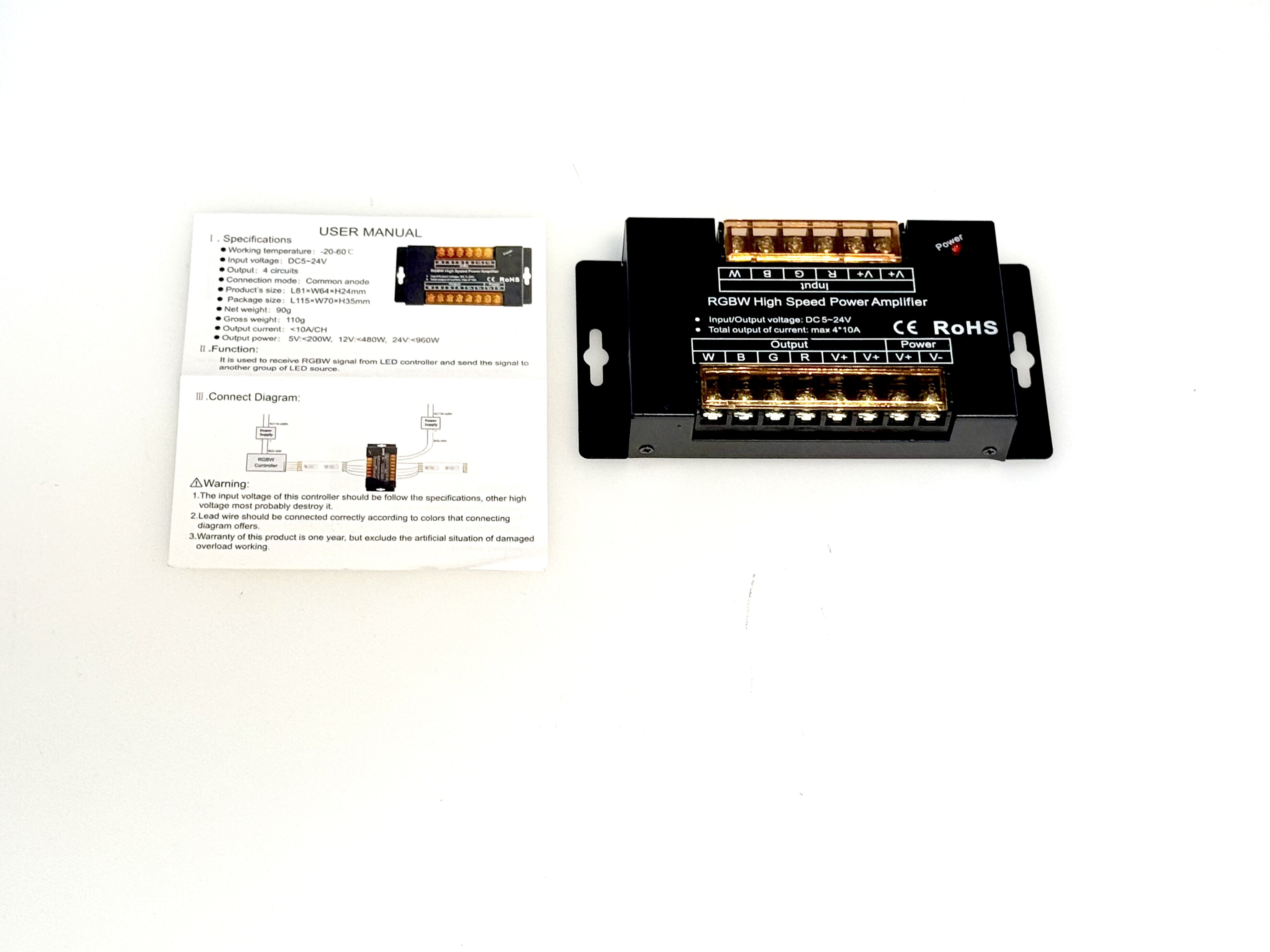

The image also contains a photo of the power amplifier module, showing terminal connections labeled RGBW, V+, and other necessary wiring points. The amplifier has a black casing with an orange terminal block.
II. Function
• The amplifier receives the RGBW signal from an LED controller and sends the signal to another LED light group.
III. Connect Diagram
The diagram visually represents how the RGBW power amplifier is connected in a circuit. It includes:
1. Power Supply (AC 110–220V to DC 5–24V converter)
2. RGBW Controller connected to the amplifier
3. RGBW LED strips connected to the amplifier
4. Correct wiring for power and signal flow
