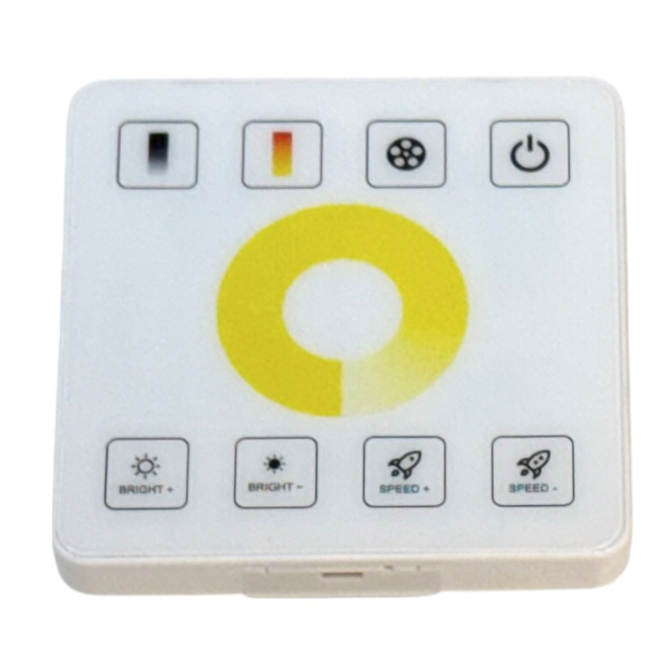

M0783 : M.T.C Canada CCT (Warm to Cool ) Colour Low Voltage Dimmer LED Touch Series Controller With Wall Touch Panel Wireless Control Input DC5-24V 10A

M0783 : M.T.C Canada CCT (Warm to Cool ) Colour Low Voltage Dimmer LED Touch Series Controller With Wall Touch Panel Wireless Control Input DC5-24V 10A

Only To Use With M.T.C Canada CCT LED Strip Light M0785

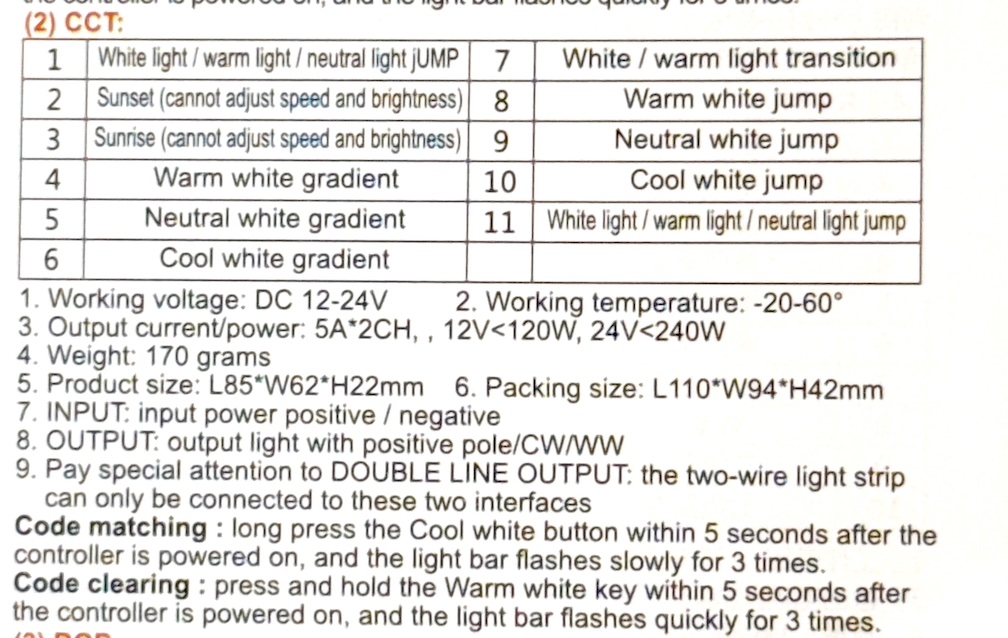

Change Colour DIM Warm to Cool

( CCT)

1 )White light / warm light / neutral light jUMP

2)Sunset (cannot adjust speed and brightness)

3)Sunrise (cannot adjust speed and brightness)

4)Warm white gradient

5)Neutral white gradient
6)Cool white gradient

7)White / warm light transition

8)Warm white jump

9)Neutral white jump

10 )Cool white jump
11) White light / warm light / neutral light jump

1. Working voltage: DC 12-24V

2. Working temperature: -20-60°

Output current/power: 5A*2CH,, 12V<120W, 24V<240W

Weight: 170 grams

Product size: L85*W62*H22mm 6. Packing size: L110*W94*H42mm

INPUT: input power positive / negative

OUTPUT: output light with positive pole/CW/WW

Pay special attention to DOUBLE LINE OUTPUT: the two-wire light strip can only be connected to these two interfaces

Code matching : long press the Cool white button within 5 seconds after the controller is powered on, and the light bar flashes slowly for 3 times.

Code clearing: press and hold the Warm white key within 5 seconds after the controller is powered on, and the light bar flashes quickly for 3 times.

Note : CCT Touch Controller Only To Use With M0785 M.T.C Canada CCT Strip light

M0783 : M.T.C Canada CCT (Warm to Cool ) Colour Low Voltage Dimmer LED Touch Series Controller With Wall Touch Panel Wireless Control Input DC5-24V 10A

Dimensions
