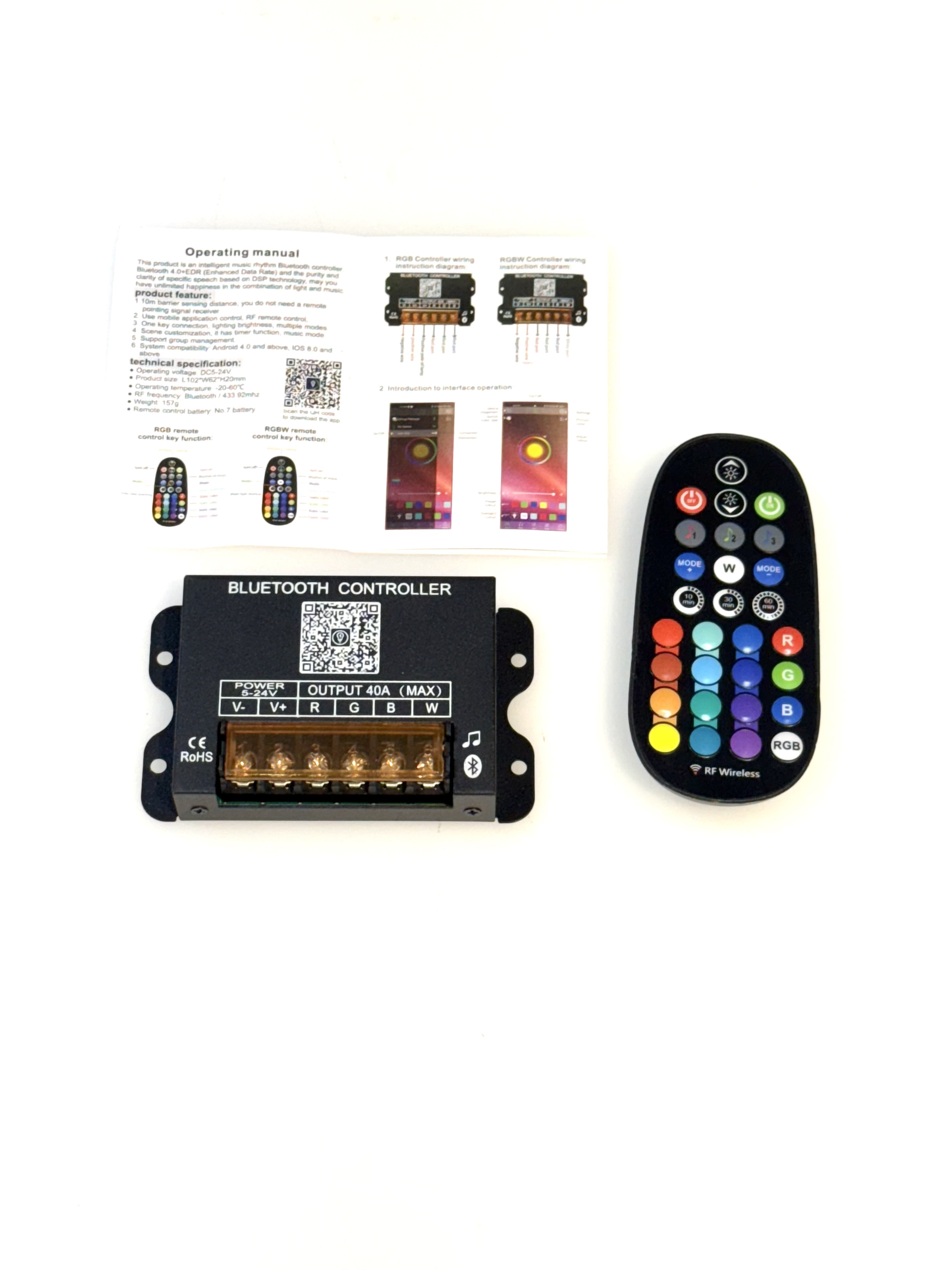

M0787 : M.T.C Canada RGBW LED Bluetooth Controller Plus Remote Input DC5-24V 40A Works With 5 Wire RGBW Strip Lights Only

Bluetooth Music Rhythm LED Controller – RGB/RGBW Remote & App Control

Enhance your lighting experience with this intelligent music rhythm Bluetooth controller, designed for seamless control of LED lights. With Bluetooth 4.0 + EDR technology and DSP-based sound clarity, this controller offers a perfect combination of light and music synchronization.

Key Features:

 10m Barrier-Free Sensing Distance – No need for direct signal pointing, ensuring convenient control.

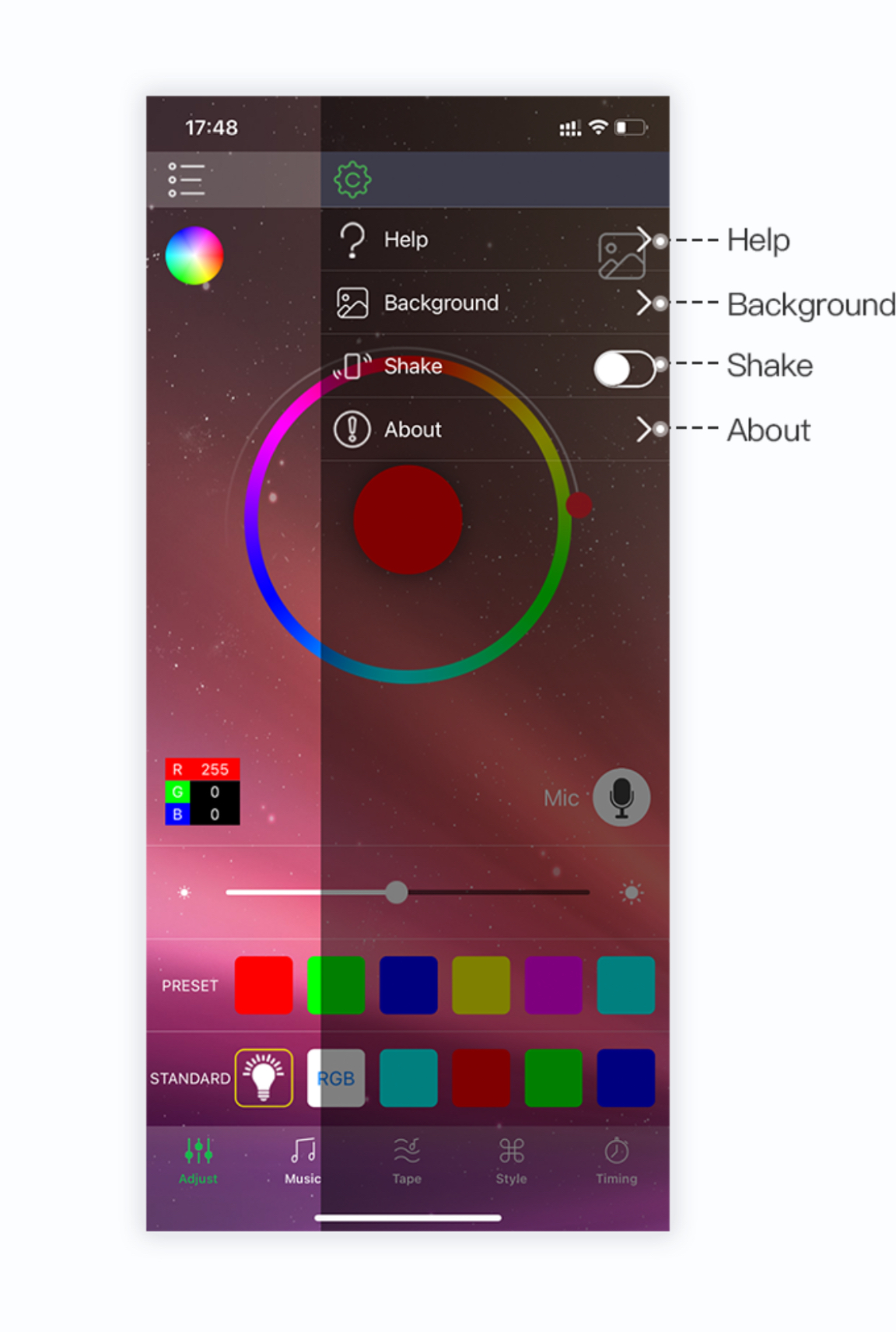

 Multiple Control Options – Supports RF remote control and mobile app control for ultimate flexibility.

 One-Key Functions – Adjust brightness, change lighting modes, and switch effects with a single press.

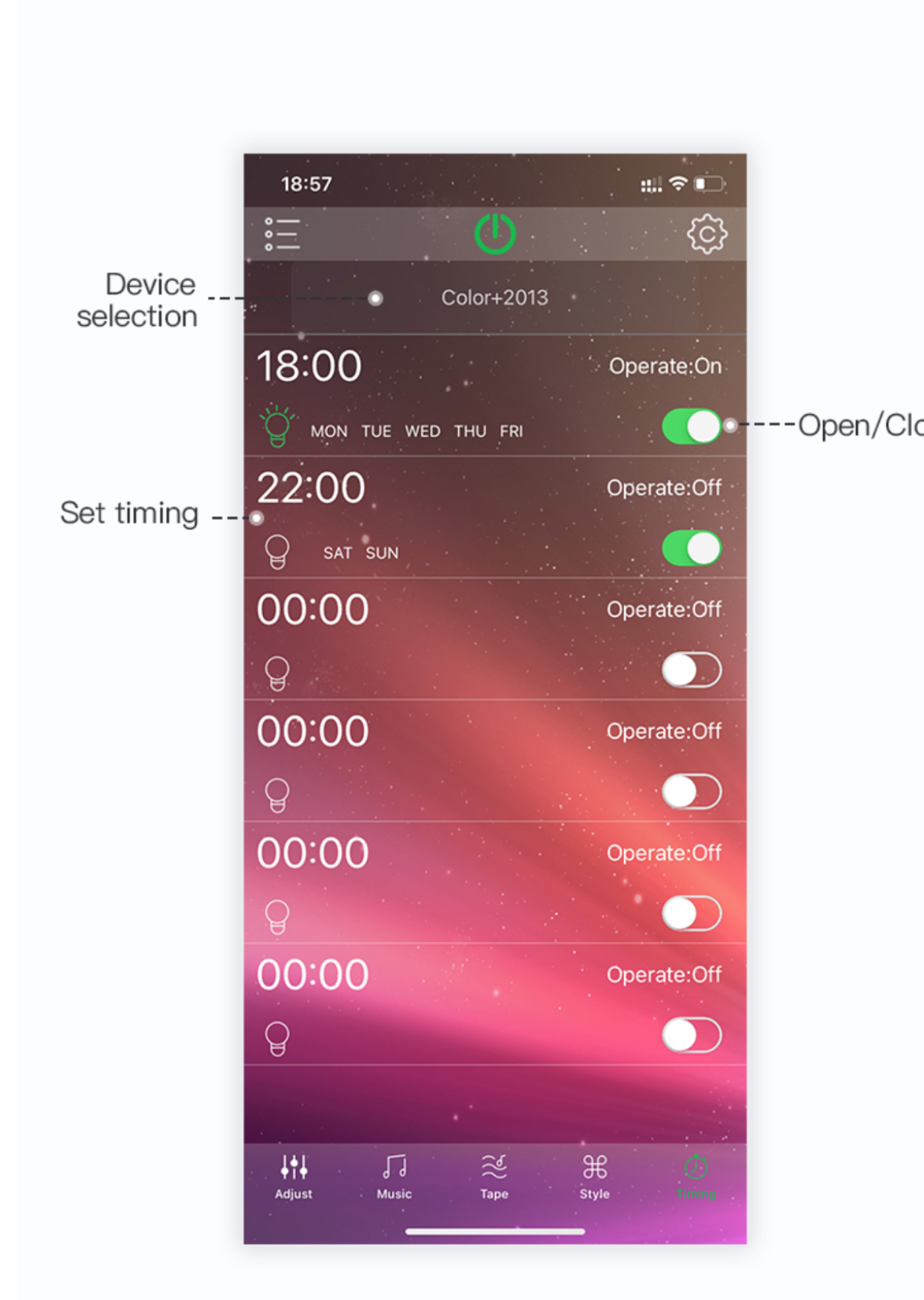

 Scene Customization – Includes a timer function and music mode for personalized experiences.

 Group Management Support – Easily manage multiple controllers for synchronized lighting effects.

 Broad Compatibility – Works with Android 4.0 and above, iOS 8.0 and above.

Technical Specifications:

 Operating Voltage: DC 5-24V

 Product Size: L102 × W62 × H20mm

 Operating Temperature: -20°C to 60°C

 RF Frequency: Bluetooth / 433.92MHz

 Weight: 157g

 Remote Control Battery: No.7 battery (AAA)

RGB & RGBW Remote Control Functions:

• Turn On/Off

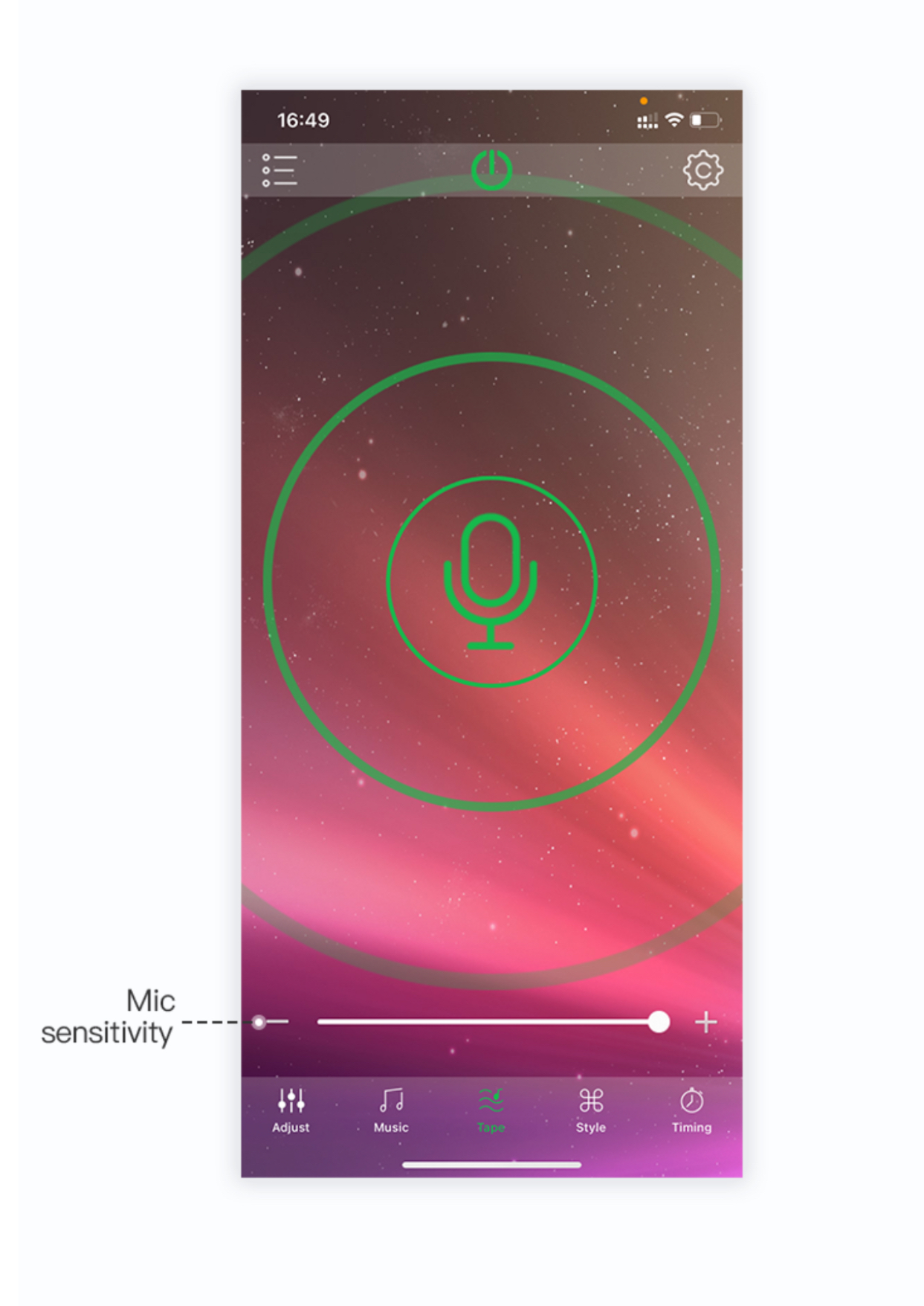

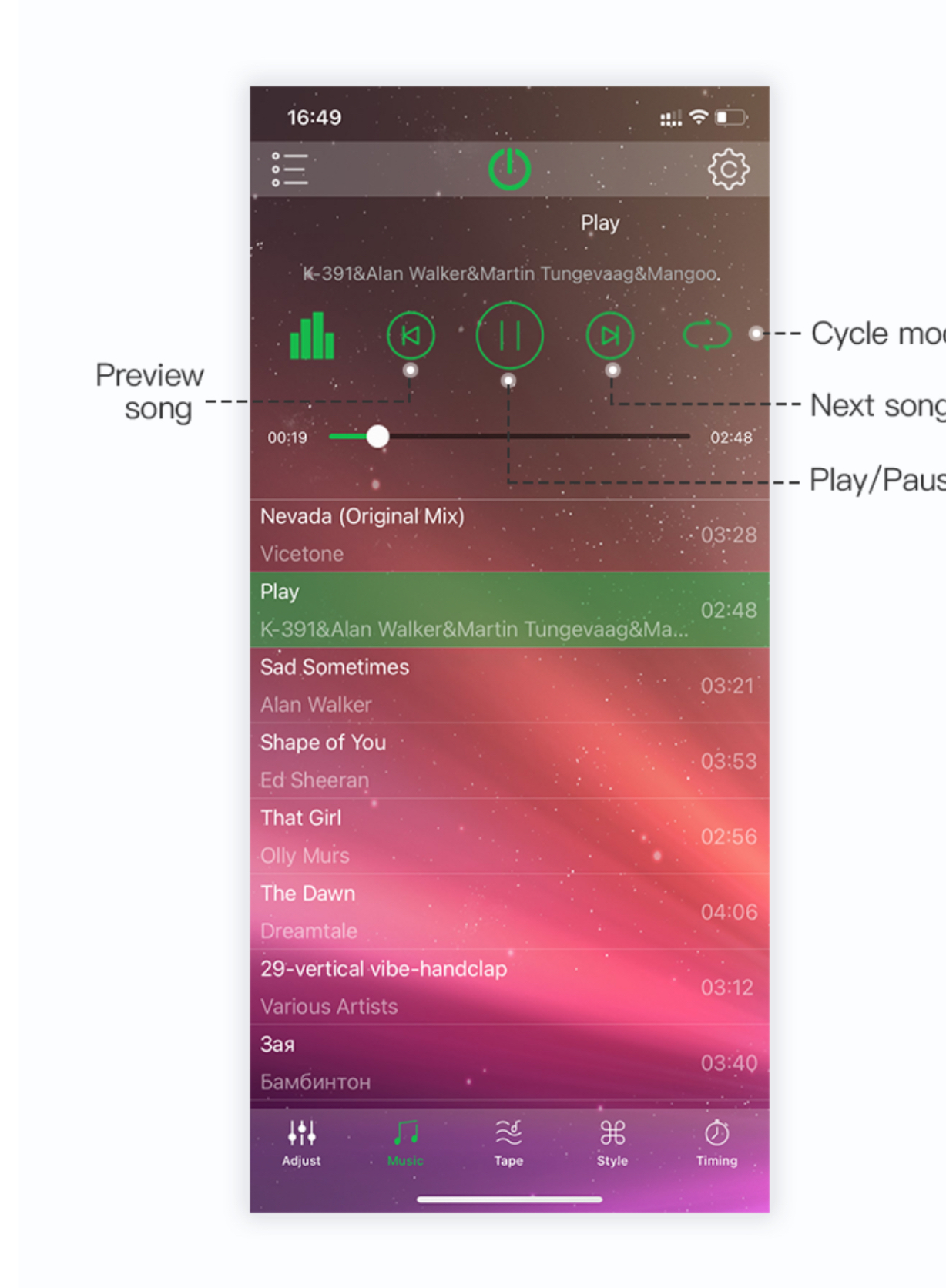

• Rhythm of Music Mode

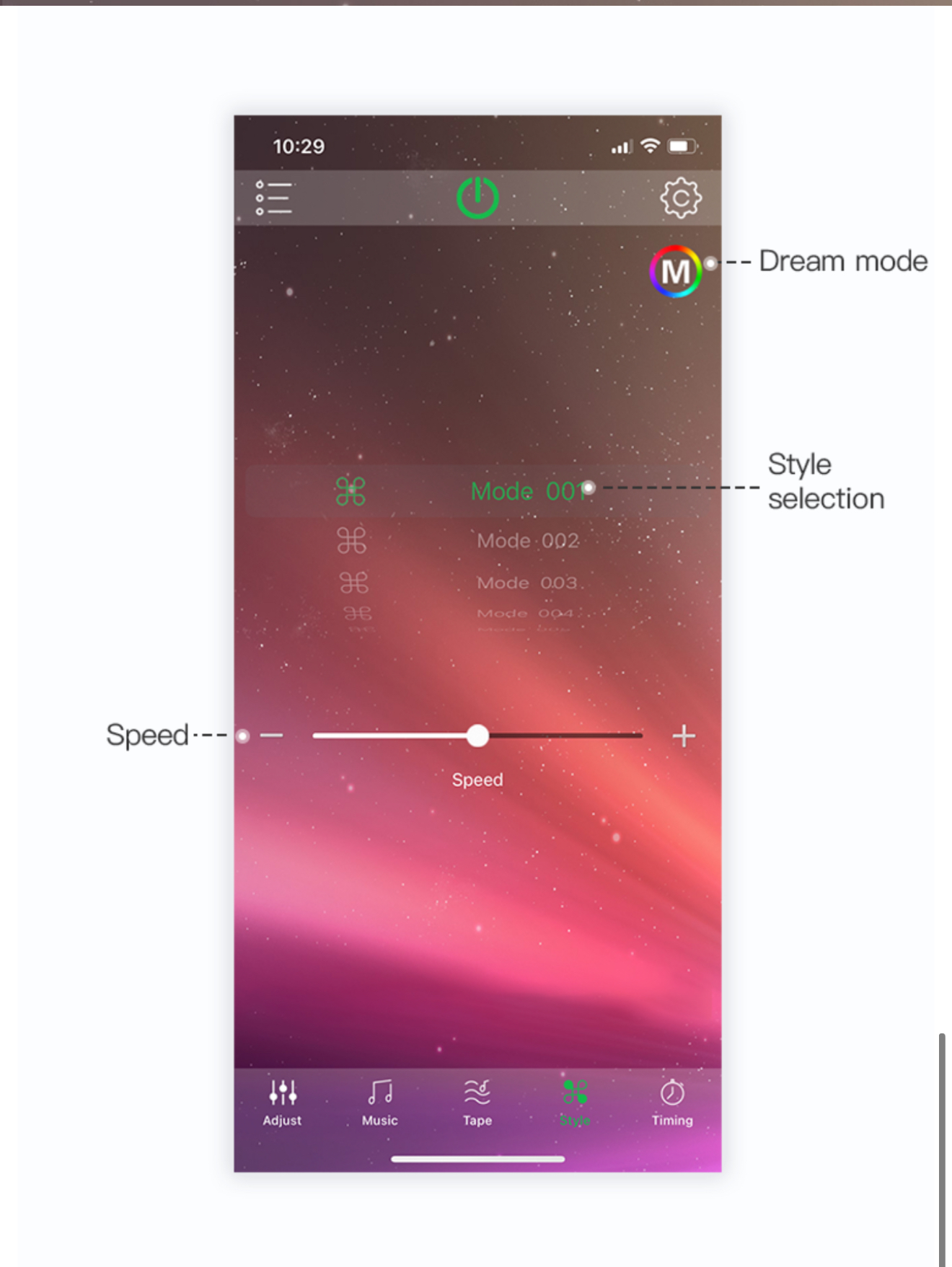

• Mode Selection (Multiple modes available)

• Lined Shutdown & Timed Shutdown

• Static Color Switching (Customizable color selection)

• White Light Shortcut (RGBW Only)

Remote Control Matching & Code Clearing:

• Code Matching: When the device is powered on for 30 seconds, press the MODE- and MODE+ indicators at the same time. Once they blink, the code matching is successful.

• Code Clearing: To clear the code, remove and reinsert the power supply five consecutive times.

Important Safety Precautions:

 Pay Special Attention To:

 Voltage Requirements: The controller operates on DC 5-24V. Do not connect to other voltages or overload the system. The total maximum output current is 30A.

 Battery Installation: Before using the wireless remote control, install the correct #7 battery (AAA).

 Correct Wiring: Ensure that the positive and negative power input connections are correct. Power should only be switched on when the connection is verified and there are no short circuits.
