M0481 : M.T.C Canada 432LEDS Triple Row Tailgate Light Bar, 60 Inch Tail Strip Light Bar for Trucks Pickup Trailer SUV RV VAN, with 4-Way Flat Connector Wire - Red Brake White Reverse Amber Turn Signal Strobe Light
Wide Fitment
This triple LED tailgate lighting bar with working voltage of 12V DC fit for turning on most vehicles.
Such as Dodge Ram 1500 2500 3500 4500, Ford F150 F250, Chevy Silverado, GMC Sierra Toyota Tundra
And most cars, trucks, Pickup, SUV, RV, Van, trailers, etc.

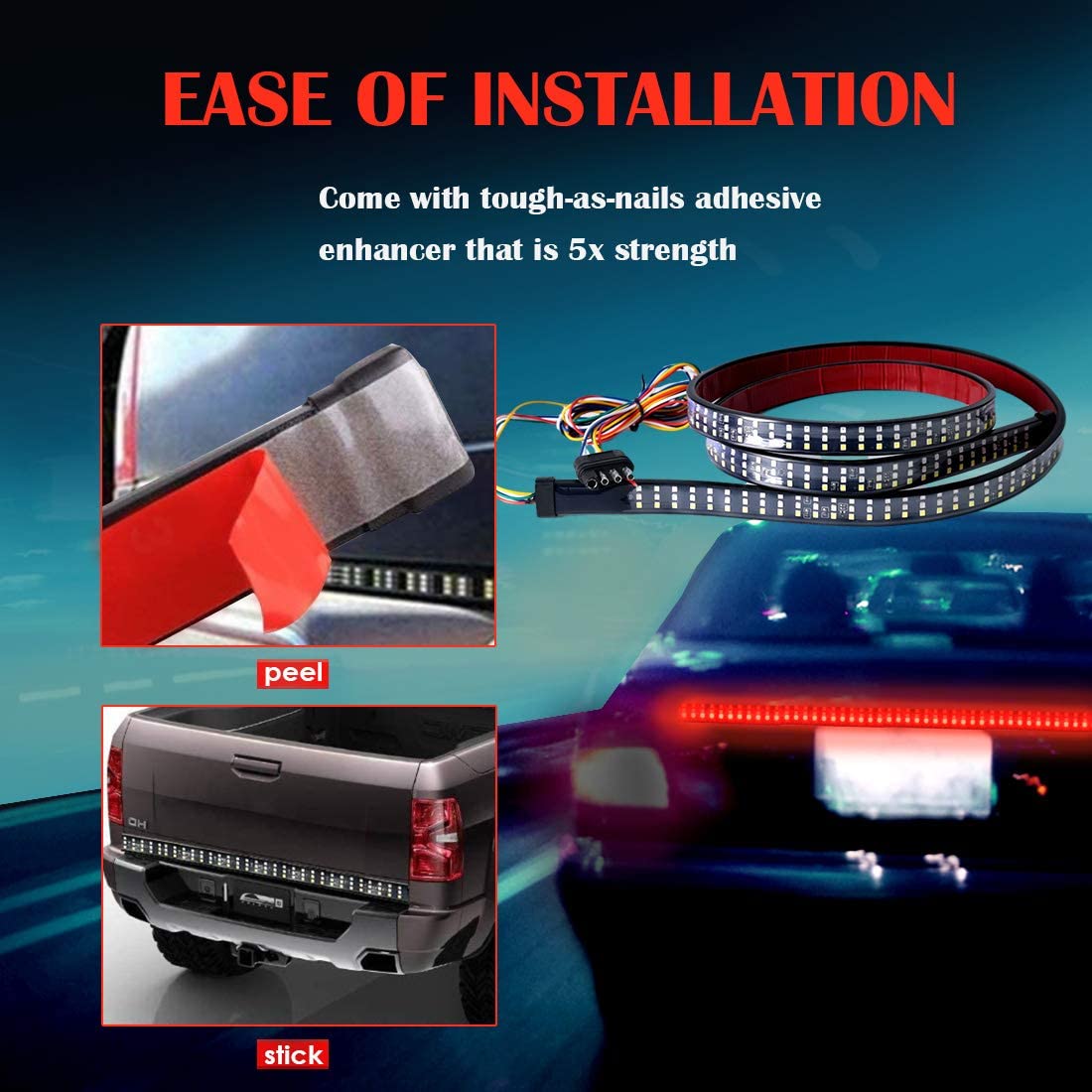

Easy Installation:

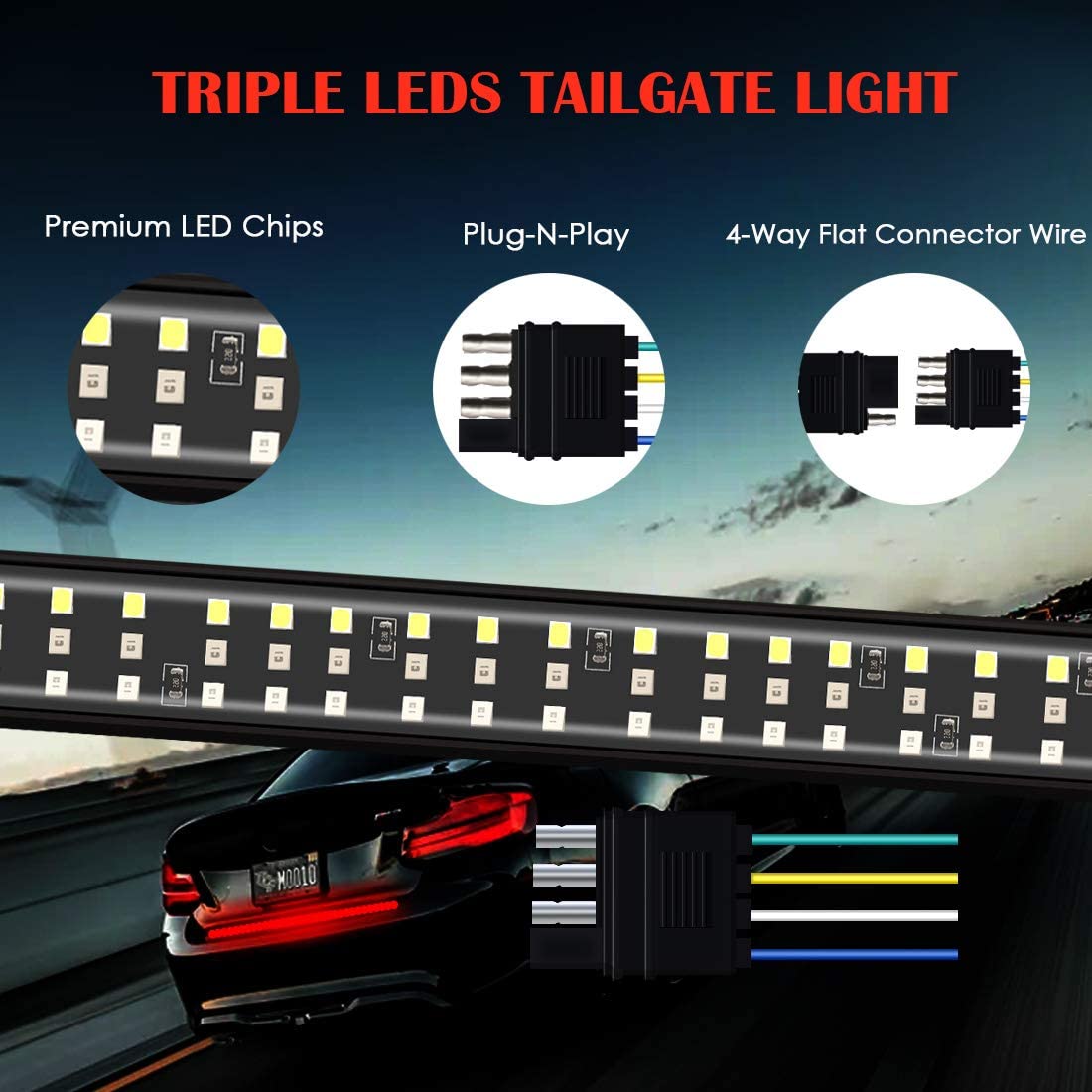

Tri-row LED light strip just need peel and stick, standard 4-pin flat connector plug and play.
Tailgate light bar comes with tough-as-nails adhesive enhancer that can increases hold strength over 5X, No worries of falling off.

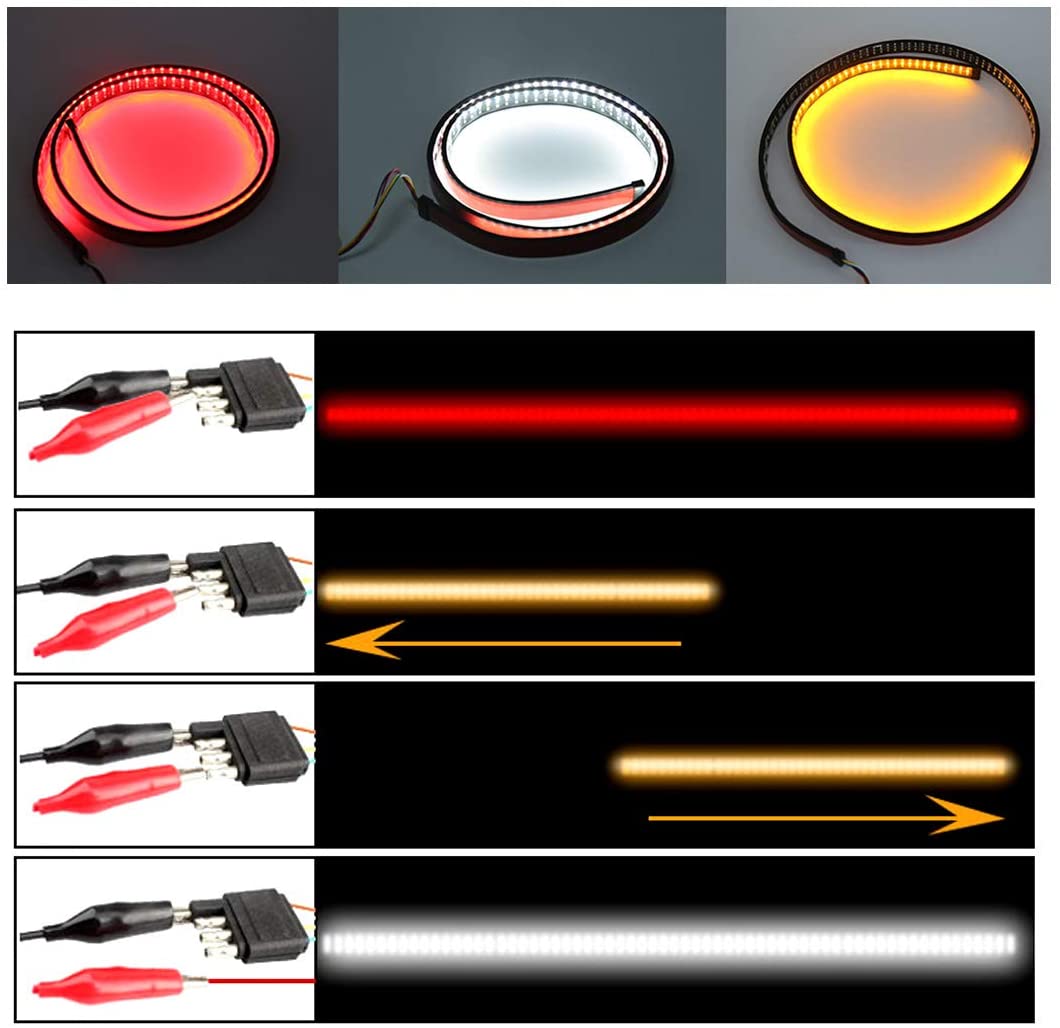

Flat 4 Pin Connector wiring diagram for reference:
Brown Wire: Ground
White Wire: Running Light
Yellow Wire: Left Turn Signal & Brake Light
Green Wire: Right Turn Signal & Brake Light
Red Wire: Reverse Light
Yellow + Green: Strobe Light
Package Included:
1 x Tri-row LED Tailgate Light
1 x 4-Way Flat Connector Wire
1 x Instruction
Note:
1, Please read the instruction paper thoroughly before any operation and installation on the light strip. Professional installation is highly recommended.
2, After installation, you need to operate the brake function to activate the program.
And then other functions can run normally,otherwise some functions may not run normally.
3, Please clean the area of the vehicle where you install it firstly, and then use the heater to make it more sticky.
Some new cars after 2018 have different wiring methods. This ratio is around 5-7%.
TIPS: The light bar can only convey"one message"to the rear vehicle at the same time. The turn signal does not work when you step on the brakes. When you wait for the red light or pause,you will inform the rear vehicle that your vehicle is stopping. When you release the brake,you will inform the rear vehicle that you are ready to make a turn.
