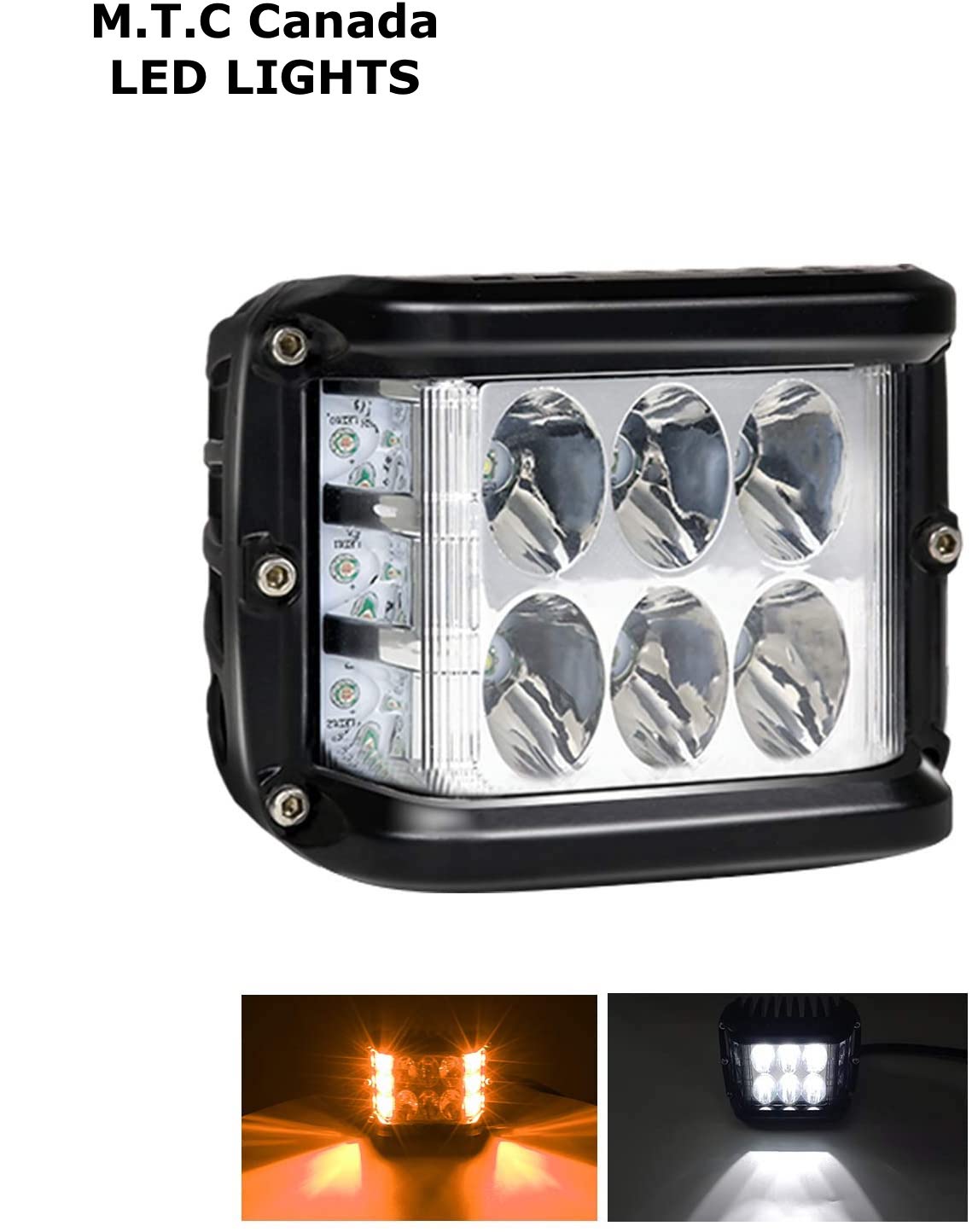

M0462 M.T.C Canada® :Side Shooter LED Pods 4 Inch Strobe Lights Dual Color
Light Bar White Amber Fog Lights Flash Yellow Off Road Driving Light for Truck
Boat
-Wide range voltage, constant current control, anti-interference circuit design.
This lamp have many mode:
-White stay on fixed
-Amber stay on fixed
-(White+amber) stay on fixed
-Amber flashing
-White fixed+Amber flashing

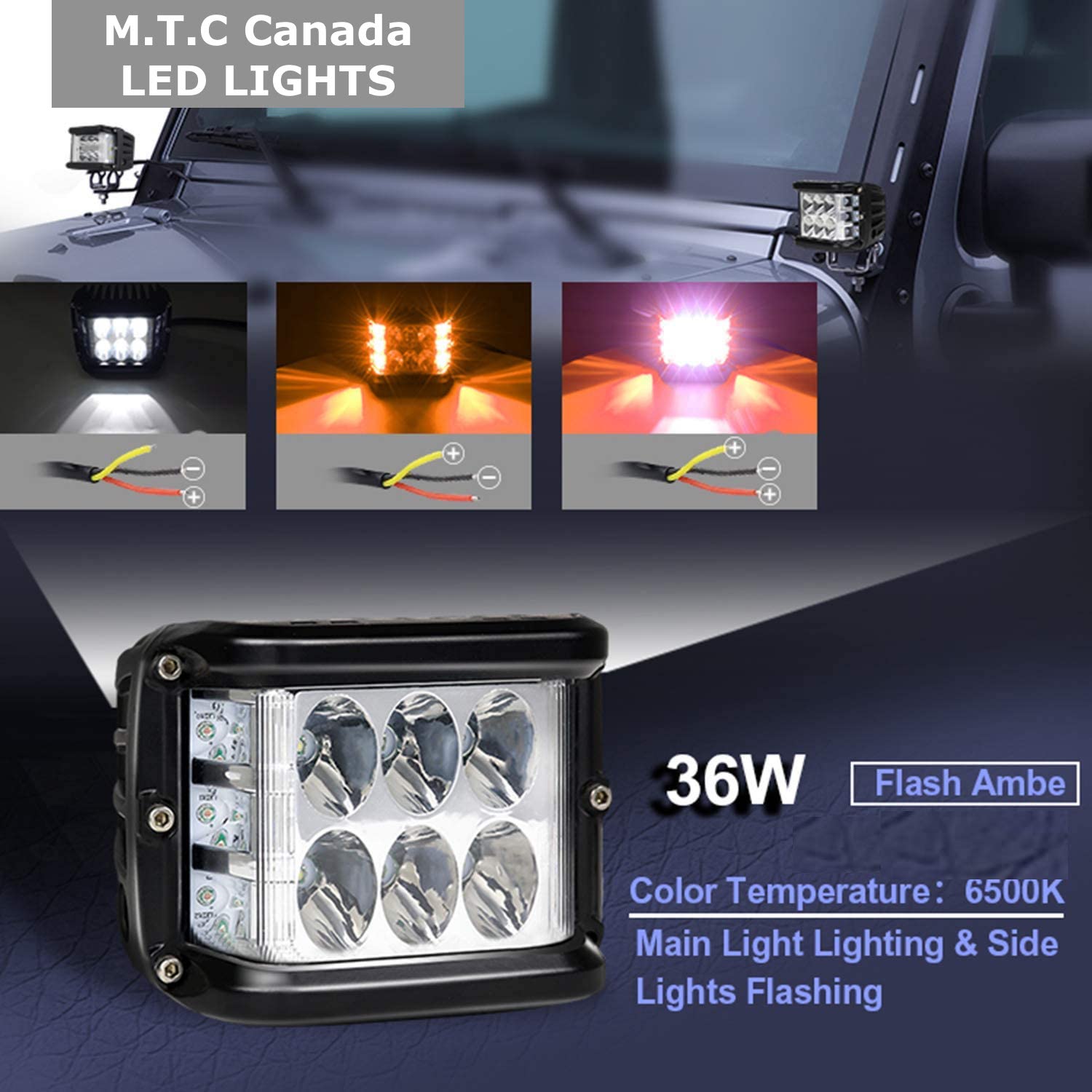

HOW TO SWITCH MODES:
The light comes with 3 wires, red & black & yellow. Black to ground(-) and red to
switch (+) and yellow to switch (+ Control mode).
1) black + red: white
2) black + yellow(first time): amber+amber
3) black + yellow(second time): left amber
4) black + yellow(third time): right amber
5) black + yellow(fouth time):amber flash
6) black + red + yellow(first time): amber+white+amber
7) black + red + yellow(second time): white+ left amber
8) black + red + yellow(third time): white+ right amber
9) black + red + yellow(fouth time): white+ amber flash
You can simply use switch control mode ( Restart can switch mode), switch the
light on, then off, then back on to go through each mode.
SPECIFICATION:
- LED Power: 36W
- LED Chips: 12Pcs 3W LEDs
- Working Voltage: DC 10-30V(DC 12V stable)
- Light Color: White+Yellow
- Lumens: 3600lm
- Waterproof: IP68
- Color Temperature: 6,000K Cool White/3000K Amber
- Working Temperature: -40℃ to +85℃
- Material: 6063 Diecast aluminium housing & PMMA Lens

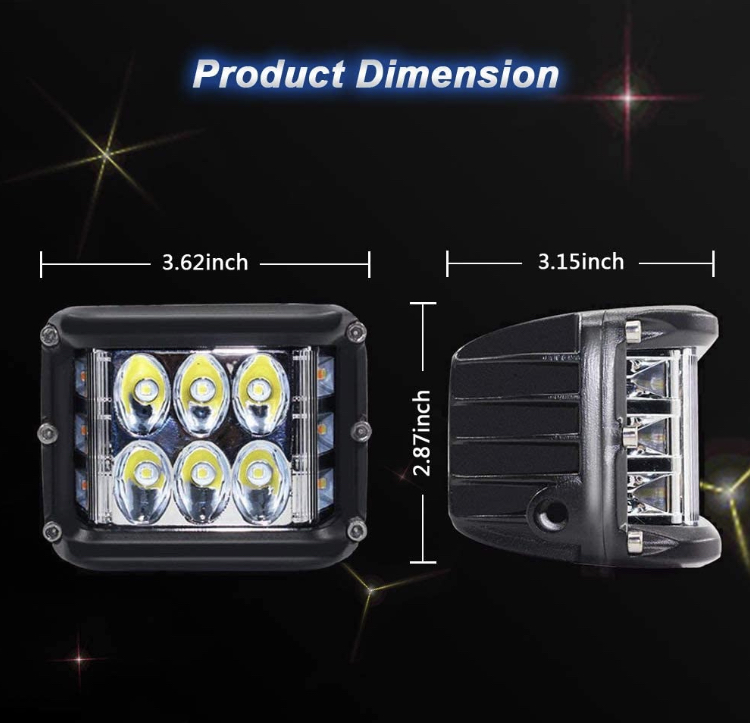

- Dimensions:3.62*2.87*3.15 inch(without bracket)
APPLICATION:
- Automotive: Pick-up, Truck, Off Road, Power Sport, UTV, ATV, SUV, Heavy Duty,
Marine, Boat, Yacht and etc.
- Indoor: Garden, Warehouse, Backyard.
PACKAGE INCLUDED:
- 2x 4inch LED Light Bar
- universal mounting kits
- screw set
